Access points Aruba (HPE) provide fast and stable wireless data transmission in a corporate network. Aruba offers both simple devices for providing basic Wi-Fi network functionality, and for networks with high user density and speeds up to 2 Gbit/s, as well as protected models for operation in difficult climatic conditions.
Access points are easy to install, can work simultaneously in ranges 2,4 And 5 GHz, use technology MIMO to increase the data transfer rate and support the standard 802.11ac Wave2.
Instant-Access points Aruba — do not require a separate controller, but use a virtual controller, the functions of which are performed by one of the points. HPE Aruba Instant — is a solution that allows you to deploy an "controlless" enterprise-grade WiFi network. It already has built-in network security, automatic management RF and enough smart features to run a complete solution without additional licensing. A cluster of access points is controlled using a virtual controller, which is located on one of the access points (IAP). The controller is responsible for the process of autoconfiguring new access points, authorization and authentication, guest access and network services (NAT, DHCP and etc.).

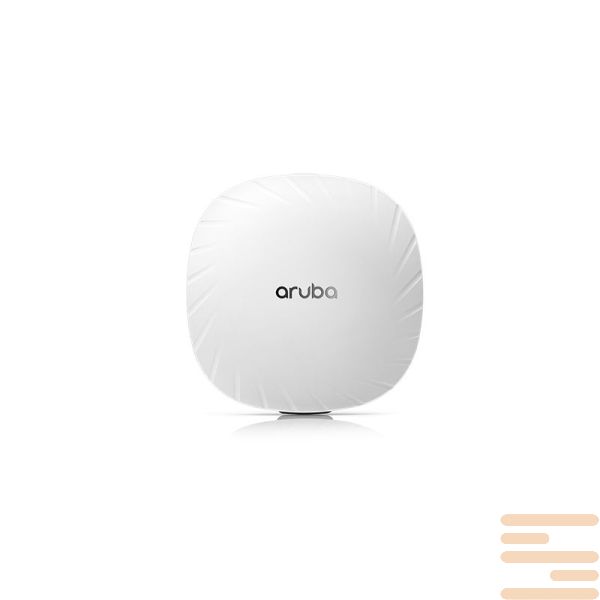

Specifications Access points Aruba (HPE) JZ356A:
|
JZ356A Specification
|
|
General Specification
|
|
Ports
|
2 HPE SmartRate RJ-45 port (maximum negotiated speed 5Gbps)
|
|
Mounting
|
Mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the Aruba mount kits (sold separately).
|
|
Input voltage
|
IEEE 802.3bt (class 5) or 802.3at PoE, or direct DC power (via optional power supply)
|
|
Power Consumption
|
POE powered (802.3bt or dual 802.3at): 38.2W POE powered (802.3at, IPM enabled): 25.1W DC powered: 38.5W
maximum (worst case)
|
|
Wi-Fi antenna
|
Mix of integrated downtilt omni-directional horizontally and vertically polarized antenna elements. Peak antenna gain of 4.3dBi (4x4 MIMO in 2.4GHz), and peak antenna gain of 5.8dBi (8x8 MIMO in 5GHz). In tri-radio mode, the peak gain of the antennas for each of the 4x4 5GHz radios is 5.5dBi (radio 0L, lower half of 5GHz) and 5.6dBi (radio 0U, upper half of 5GHz).
|
|
Radio coverage
|
Dual-radio (8x8 and 4x4 MIMO) IEEE 802.11ax AP with up-and downlink OFDMA and Multi-User MIMO (MU-MIMO). Optional tri-radio mode with two 5GHz and one 2.4GHz radio (all 4x4 MIMO). Maximum data rates of 4.8Gbps in the 5GHz band and 1,150Mbps in the 2.4GHz band (for an aggregate peak data rate of 5.95Gbps).
|
|
Product Dimensions (imperial)
|
2.3 x 10.2 x 10.2 in
|
|
Environmental Specifications
|
|
Operating conditions
|
|
Temperature
|
0C to +50C / +32F to +122F
|
|
Humidity
|
5% to 93% non-condensing
|
|
Storage and transportation conditions
|
|
Temperature
|
-40C to +70C / -40F to +158F
|
|
Humidity
|
5% to 93% non-condensing
|
