Access points Aruba (HPE) provide fast and stable wireless data transmission in a corporate network. Aruba offers both simple devices for providing basic Wi-Fi network functionality, and for networks with high user density and speeds up to 2 Gbit/s, as well as protected models for operation in difficult climatic conditions.
Access points are easy to install, can work simultaneously in ranges 2,4 And 5 GHz, use technology MIMO to increase the data transfer rate and support the standard 802.11ac Wave2.
Instant-Access points Aruba — do not require a separate controller, but use a virtual controller, the functions of which are performed by one of the points. HPE Aruba Instant — is a solution that allows you to deploy an "controlless" enterprise-grade WiFi network. It already has built-in network security, automatic management RF and enough smart features to run a complete solution without additional licensing. A cluster of access points is controlled using a virtual controller, which is located on one of the access points (IAP). The controller is responsible for the process of autoconfiguring new access points, authorization and authentication, guest access and network services (NAT, DHCP and etc.).

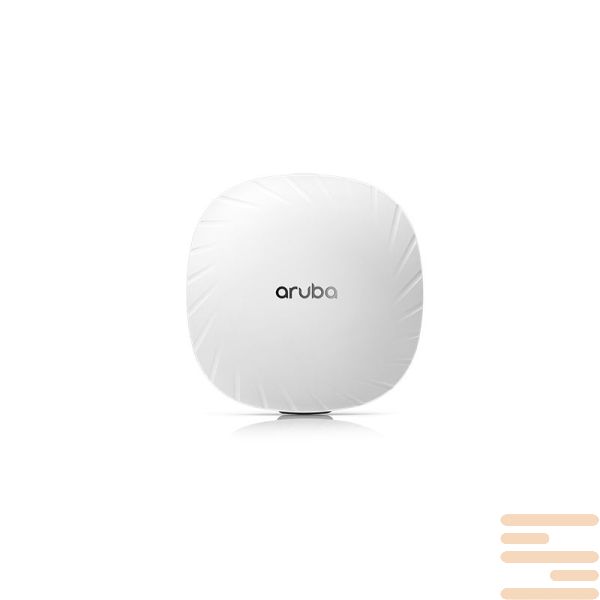

Specifications Access points Aruba (HPE) R2H22A:
|
R2H22A Specification
|
|
Internet of Things (IoT)
|
|
Internet of Things (IoT) Compatible
|
Yes
|
|
Communications Technology
|
Bluetooth Low Energy (LE), Zigbee
|
|
Networking
|
|
Form Factor
|
External
|
|
Connectivity Technology
|
Wireless
|
|
Data Transfer Rate
|
1.2 Gbps
|
|
Line Coding Format
|
CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA
|
|
Data Link Protocol
|
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
|
|
Spread Spectrum Method
|
OFDM, DSSS, OFDMA
|
|
Frequency Band
|
2.4 GHz, 5 GHz
|
|
Performance
|
Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1.2 Gbps ¦ Aggregate throughput: 1.774 Gbps
|
|
Capacity
|
Wireless clients per Wi-Fi radio: 256 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 8
|
|
Status Indicators
|
System, status
|
|
Encryption Algorithm
|
SSL, WPA, WPA2, WPA3
|
|
Compliant Standards
|
IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6
|
|
Environmental Parameters
|
|
Min Operating Temperature
|
32 °F
|
|
Max Operating Temperature
|
122 °F
|
|
Humidity Range Operating
|
5 - 93% (non-condensing)
|
|
General
|
|
Device Type
|
Wireless access point
|
|
Ruggedized Design
|
Indoor
|
|
Width
|
6.3 in
|
|
Depth
|
6.3 in
|
|
Height
|
1.5 in
|
|
Expansion / Connectivity
|
|
Interfaces
|
1 x 1000Base-T - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 2 x antenna - RP-SMA x 2 ¦ 1 x console - micro-USB
|
|
Power
|
|
Power Over Ethernet (PoE) Supported
|
PoE
|
|
Power Consumption Operational
|
8.9 Watt
|
|
Antenna
|
|
Antenna
|
External detachable
|
|
Antenna Qty
|
2
|
|
Software / System Requirements
|
|
OS Required
|
ArubaOS, InstantOS
|
