Access points Aruba (HPE) provide fast and stable wireless data transmission in a corporate network. Aruba offers both simple devices for providing basic Wi-Fi network functionality, and for networks with high user density and speeds up to 2 Gbit/s, as well as protected models for operation in difficult climatic conditions.
Access points are easy to install, can work simultaneously in ranges 2,4 And 5 GHz, use technology MIMO to increase the data transfer rate and support the standard 802.11ac Wave2.
Instant-Access points Aruba — do not require a separate controller, but use a virtual controller, the functions of which are performed by one of the points. HPE Aruba Instant — is a solution that allows you to deploy an "controlless" enterprise-grade WiFi network. It already has built-in network security, automatic management RF and enough smart features to run a complete solution without additional licensing. A cluster of access points is controlled using a virtual controller, which is located on one of the access points (IAP). The controller is responsible for the process of autoconfiguring new access points, authorization and authentication, guest access and network services (NAT, DHCP and etc.).

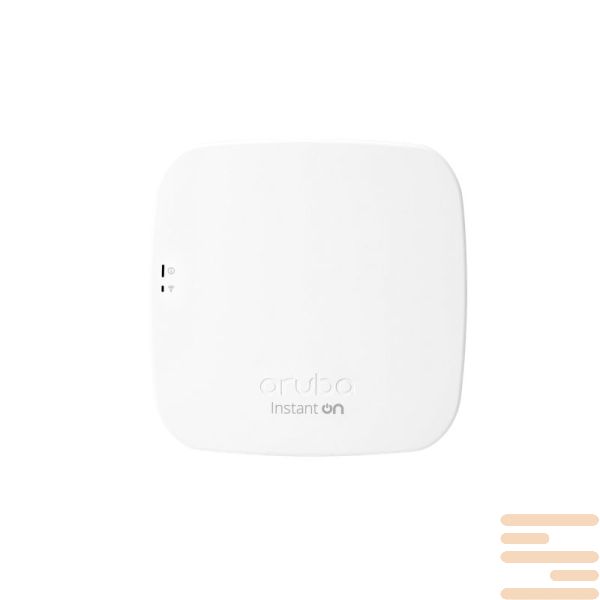

Specifications Access points Aruba (HPE) R2X06A:
|
R2X06A Specification
|
|
Radios
|
Dual Radio for simultaneous dual-band operation
5 GHz 802.11ac 3x3 MIMO for up to 1,733Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5)
2.4 GHz 802.11n 2x2 MIMO for up to 300Mbps wireless data rate (Wi-Fi 4)
|
|
Interfaces
|
Uplink Gigabit Ethernet port, with POE-in support (802.3af)
DC power connector (12V)
USB host interface (future use)
Bluetooth Low Energy (BLE) radio
LED status indicators (2)
Reset/LED control button
Kensington security slot
|
|
Antennas
|
Integrated downtilt omni-directional antennas with maximum individual antenna gain of 3.9dBi in 2.4GHz and 5.4dBi in 5GHz
|
|
Dimension
|
183mm x 183mm x 41mm, excluding mount accessories
|
|
Power
|
Power over Ethernet (POE): 802.3af (class 3)
Max power consumption (worst-case): 14.4W (PoE), 12.7W (DC)
DC power (12V)
Note: Power sources are sold separately
|
|
Mounting
|
The access point ships with a (black) mount clip to attach to suspended ceiling rails, and a (white) mount clip to attach to solid surfaces (wall/ceiling)
|
|
Environmental & reliability
|
Operating Temperature: 0° C to +50° C (+32° F to +122° F)
MTBF: 916khrs (105yrs) at +25° C
|
|
Industry certifications
|
UL2043 plenum rating
EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)
Wi-Fi Alliance certified (WFA) 802.11ac with Wave 2 (Wi-Fi 5), WPA2, WPA3
|
|
Management options
|
Instant On mobile application (Android & iOS)
Cloud Portal: Portal.ArubaInstantOn.com
|
