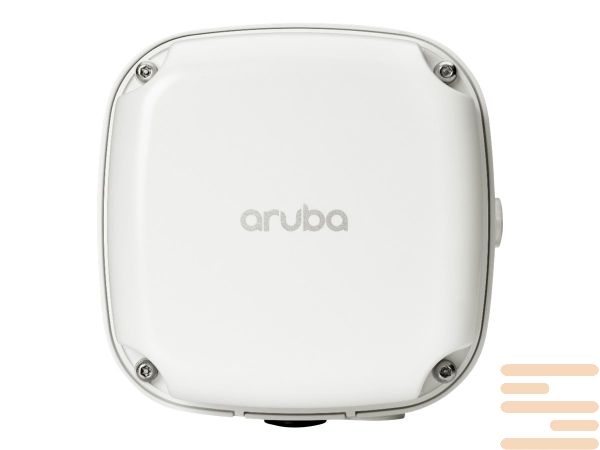

Access point Aruba (HPE) R4W66A

Aerial

Antenna:

Internal

Directivity:

Directional

Gain Level:

6.8 dBi

Environmental Parameters

Humidity Range Operating:

5 - 95% (non-condensing)

Max Operating Temperature:

55 °C

Min Operating Temperature:

-40 °C

Expansion / Connectivity

Interfaces:

1 x 1000Base-T (PoE+) - RJ-45 ¦ 1 x console - USB-C

General

Depth:

16.5 cm

Device Type:

Radio access point

Height:

11 cm

Ruggedized Design:

Outdoor

Weight:

1.09 kg

Width:

16.5 cm

Internet of Things (IoT)

Communications Technology:

Zigbee

Internet of Things (IoT) Compatible:

Yes

Miscellaneous

Compliant Standards:

FCC, EN 60601-1-2, IP67, IP66, EN 60601-1-1, EMC 2014/30/EU, LVD 2014/35/EU, ISED, IEC/EN/UL 60950, RED 2014/53/EU

Pricing Type:

BTO

Networking

Capacity:

Wireless clients per Wi-Fi radio: 256 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 16

Compliant Standards:

IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac Wave 2, IEEE 802.3bz, IEEE 802.11ax, Wi-Fi CERTIFIED 6

Connectivity Technology:

Wireless

Data Link Protocol:

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)

Data Transfer Rate:

1.2 Gbps

Encryption Algorithm:

SSL, WPA3, WPA3-Enhanced Open, WPA2-MPSK

Features:

Auto-uplink (auto MDI/MDI-X), DFS support, deep inspection, Trusted Platform Module (TPM), reset button, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Virtual Mobility Controller mode, Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, SU-MIMO technology, Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), High-Throughput (HT) support, Zero-touch provisioning (ZTP), Energy-Efficient Ethernet (EEE), Orthogonal Frequency Division Multiplexing (OFDM), waterproof, 2x2 MIMO technology, Very High Throughput (VHT) support, Orthogonal Frequency Division Multiple Access (OFDMA), High Efficiency (HE) support, Target Wait Time (TWT), hardened, Wi-Fi 6 technology, Policy Enforcement Firewall (PEF), Layer 7 Deep Packet Inspection (DPI), Passpoint Release 2

Form Factor:

External

Frequency Band:

2.4 GHz, 5 GHz

Line Coding Format:

CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA

Network / Transport Protocol:

IPSec

Performance:

Maximum data rate (5 GHz): 1.2 Gbps ¦ Maximum data rate (2.4 GHz): 574 Mbps ¦ Aggregate data rate: 1.49 Gbps

Spread Spectrum Method:

OFDM, DSSS, OFDMA

Status Indicators:

System, status, radio

Power

Power Consumption Operational:

15.6 Watt

Power Over Ethernet (PoE) Supported:

PoE Class 3

Software / System Requirements

OS Required:

ArubaOS, InstantOS
