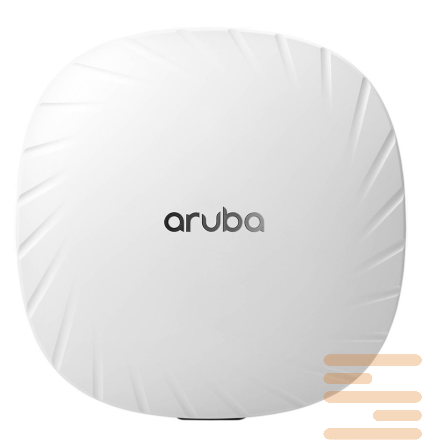

Access point Aruba (HPE) S4K20A
Aruba AP-535H (S4K10A) Indoor access point, Wi-Fi 6E (802.11ax)
Access points Aruba (HPE) provide fast and stable wireless data transmission in the corporate network. Aruba offers both simple devices for providing basic Wi-Fi network functionality and for networks with high user density and speeds up to 2 GbIT/s, and also protected models for operation in difficult climatic conditions.
Access points are simple in installation, can work simultaneously in ranges 2,4 and 5 GHz, They use technology MIMO To increase the data rate and support the standard 802.11ac Wave2.
Instant-Access points Aruba — do not require a separate controller, but use a virtual controller whose functions performed one of the points. HPE Aruba Instant — This is a solution that allows you to deploy an "uncontrolled" WiFi level network. He already has built -in network safety, automatic control RF and enough intellectual functions to start a full solution without additional licensing. Controls cluster from access points using a virtual controller that is placed at one of the access points (IAP). The controller is responsible for the process of auto configuration of new access points, authorization and authentication, guest access and network services (NAT, DHCP and others.).
Specifications Access points Aruba (HPE) S4K20A:
| Specification Category | Details |
|---|---|
| Model | Aruba AP-535H (S4K10A) |
| Device Type | Indoor access point, Wi-Fi 6E (802.11ax) |
| Wireless Bands | Tri-band: 2.4 GHz, 5 GHz, and 6 GHz |
| MIMO Configuration | 4×4 MIMO per radio |
| Maximum Data Rate | Up to 2.97 Gbps aggregate |
| Supported Standards | IEEE 802.11a/b/g/n/ac/ax |
| Interfaces | 2.5 GbE uplink; optional additional downlink ports |
| Power Options | 802.3at/bt PoE; optional external DC power |
| IoT & Location Integration | Integrated Bluetooth and Zigbee radios |
| Key Features | OFDMA, MU-MIMO, Aruba Air Slice load prioritization, WPA3 security |
| Management | Aruba Central and AirWave platform management |
| Mounting Options | Ceiling or wall mount |
| Operating Temperature | 0 °C to 40 °C |
| Humidity | 5 % to 95 % non-condensing |
| Power Consumption | Typical operation with standard PoE class |
| Warranty | Aruba limited lifetime hardware warranty |
| condition | new |
|---|
