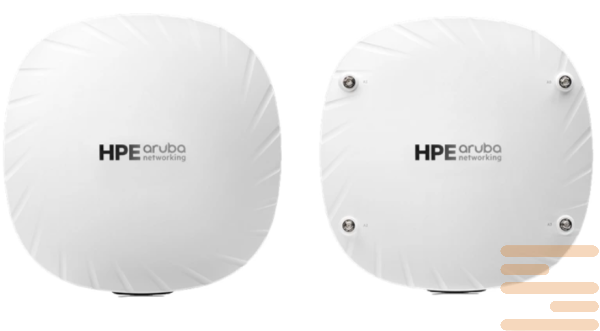

Access point Aruba (HPE) S4K35A
Aruba AP-775 (S4K35A) (760 Series Outdoor Wi-Fi 7 AP) Outdoor/hardened access point, Wi-Fi 7 (802.11be)
Access points Aruba (HPE) provide fast and stable wireless data transmission in the corporate network. Aruba offers both simple devices for providing basic Wi-Fi network functionality and for networks with high user density and speeds up to 2 GbIT/s, and also protected models for operation in difficult climatic conditions.
Access points are simple in installation, can work simultaneously in ranges 2,4 and 5 GHz, They use technology MIMO To increase the data rate and support the standard 802.11ac Wave2.
Instant-Access points Aruba — do not require a separate controller, but use a virtual controller whose functions performed one of the points. HPE Aruba Instant — This is a solution that allows you to deploy an "uncontrolled" WiFi level network. He already has built -in network safety, automatic control RF and enough intellectual functions to start a full solution without additional licensing. Controls cluster from access points using a virtual controller that is placed at one of the access points (IAP). The controller is responsible for the process of auto configuration of new access points, authorization and authentication, guest access and network services (NAT, DHCP and others.).
Specifications Access points Aruba (HPE) S4K35A:
| Specification Category | Details |
|---|---|
| Model / Part Number | HPE Aruba Networking AP-764 (RW) – Flex Radio 2x2 Wi-Fi 7 Connectorized Hardened AP (S4K35A) |
| Wi-Fi Standard | Wi-Fi 7 (IEEE 802.11be) |
| Radio Configuration | Dual-radio, connectorized design with external antenna support |
| Frequency Bands | Tri-band: 2.4 GHz, 5 GHz, and 6 GHz |
| Peak Aggregate Data Rate | Up to 5.8 Gbps (6 GHz, 4×4, 160 MHz channel) |
| Alternate Aggregate Rate | Up to 4.3 Gbps (combined 5 GHz + 6 GHz with dual 2×2 MIMO) |
| MIMO Support | 2×2 per radio with advanced Multi-Link Operation (MLO) |
| IoT Radios | Integrated Bluetooth and IEEE 802.15.4 (Zigbee), connectorized for external IoT antennas |
| Wired Connectivity | 1 × 5 GbE port for high-speed uplink |
| Environmental & Certification | Ruggedized, IP66/IP67 rated, hardened for outdoor/industrial/hazardous environments |
| Antenna Options | External antenna support (connectorized design) |
| Security Features | WPA3, Enhanced Open, Dynamic Segmentation, Policy Enforcement, Secure Boot, TPM |
| Management & Intelligence | Managed via Aruba Central; supports AI-powered automation, ClientMatch, AirMatch, Zero-Touch Provisioning |
| Advanced Features | 4K QAM, OFDMA, MU-MIMO, Target Wake Time (TWT), AI-based power optimization, embedded GPS support |
| Operating Temperature | -40 °C to +65 °C |
| Dimensions | Approx. 22 × 22 × 6.5 cm (without antennas) |
| Weight | Approx. 2.5 kg |
| Mounting Options |
| condition | new |
|---|
