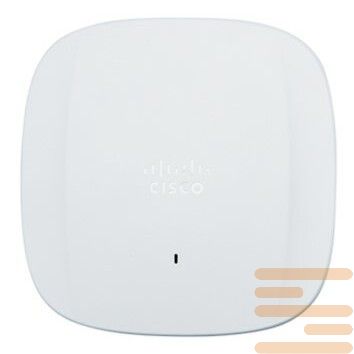

Access point Cisco CW9164I-E
2205 $
Cisco Catalyst 9100 – an innovative series of corporate Internet access points that are equipped with state-of-the-art hardware and support modern patented technologies and methods Cisco.
Units of this level are profiled for modern high-tech firms and enterprises that value a high level of performance and safety..
Line of new hotspots Cisco Catalyst 9100 represented by the following models: Catalyst 9115, Catalyst 9117 And Catalyst 9120.
access point Catalyst 9115 – is a unique device based on 6-1st generation WI-FI or 802.11Oh, which provides a triple increase in the speed of receiving and transmitting an Internet signal.
Peculiarities
- Simultaneous operation on all frequencies
- Multi-gigabit network interface
- New power-saving mode extends battery life
- Technology support Trust Anchor, guaranteeing the authenticity of software and hardware
- Certification WIFI 6
- Three radio modules: 2,4 GHz, 5 GHz And Bluetooth Low Energy (BLE) 5.0
- Support OFDMA And MU-MIMO 4x4
Catalyst 9117 – enterprise-class wireless access point, it has a multi-gigabyte interface and supports frequency division technology OFDMA And MU-MIMO 8x8. In addition, the access point is equipped with three radio modules and supports up to five thousand connected clients..
Peculiarities
- Simultaneous operation on all frequencies
- Multi-gigabit network interface
- New power-saving mode extends battery life
- Technology support Trust Anchor, guaranteeing the authenticity of software and hardware
- Certification WIFI 6
- Three radio modules: 2,4 GHz, 5 GHz And Bluetooth Low Energy (BLE) 5.0
- Support OFDMA And MU-MIMO 8x8
Catalyst 9120 – the most progressive model among all access points based on a new data transfer protocol WI-FI 6. The model is equipped with 4 radio modules and is produced with both internal and external antennas..
Peculiarities
- Certification WIFI 6
- Four radio modules: 2,4 GHz, 5 GHz, 5 GHz (dedicated radio module) And Bluetooth Low Energy (BLE) 5.0
- Support OFDMA And MU-MIMO 8x8
- Simultaneous operation on all frequencies
- Multi-gigabit network interface
- New power-saving mode extends battery life
- Technology support Trust Anchor, guaranteeing the authenticity of software and hardware
|
Datasheet wifi 6 CW9164I-E |
|
|
Specifications |
|
|
802.11ax |
4x4 uplink/downlink MU-MIMO with four spatial streams (5 GHz and 6 GHz) 2x2 uplink/downlink MU-MIMO with two spatial streams (2.4 GHz) Uplink/downlink OFDMA, TWT, BSS coloring, MRC 802.11ax beamforming 20-, 40-, 80-, and 160-MHz channels (6 GHz) 20-, 40-, 80-, channels (5 GHz) 20-MHz channels (2.4 GHz) PHY data rates up to 7.49 Gbps (4x4 160 MHz on 6 GHz, 4x4 80 MHz on 5 GHz, and 2x2 20 MHz on 2.4 GHz) Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) 802.11 DFS, CSD support, WPA3 support |
|
Integrated antenna |
2.4 GHz: Peak gain 3 dBi, internal antenna, omnidirectional in azimuth 5 GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth 6 GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth |
|
Interfaces |
- 1x 100M/1000M/2.5G Multigigabit Ethernet (RJ-45) - 1x Management console port (RJ-45) - 1x USB 2.0 |
|
Indicators |
Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
|
Input power requirements |
802.3bt, Cisco Universal PoE (Cisco UPOE ®), 802.3at Power over Ethernet Plus (PoE+) Cisco power injectors: AIR-PWRINJ7=, AIR-PWRINJ6=, MA-INJ-6 802.3af PoE (only for configuration staging, all radios off) DC power input (54V) |
|
System memory |
2 GB DRAM 1 GB flash |
|
Supported wireless LAN controllers |
Cisco Catalyst 9800 Series Wireless Controllers (WLC) |
|
Environmental |
|
|
Nonoperating (storage) temperature |
-22° to 158°F (-30° to 70°C) |
|
Nonoperating (storage) altitude test |
25°C (77°F) at 15,000 ft (4600 m) |
|
Operating temperature |
32° to 122°F (0° to 50°C) |
|
Operating humidity |
10% to 90% (noncondensing) |
|
Operating altitude test |
40°C (104°F) at 9843 ft (3000 m) |
|
Dimensions |
|
|
Dimensions (W x L x H) |
9.5 x 9.5 x 2.2 in (24.13 x 24.13 x 5.69 cm) |
|
Weight |
3.54 lb (1.60 kg) |
| condition | new |
|---|
