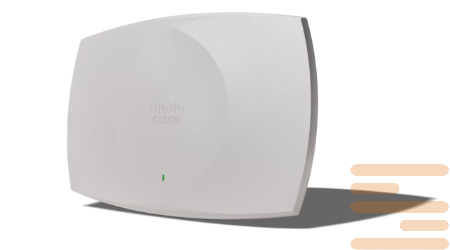

Access point Cisco CW9166D1-E
Cisco Catalyst 9166 Series – Wi‑Fi 6E indoor AP with directional antenna Three 4×4 MU‑MIMO radios: 2.4 GHz, 5 GHz, and XOR flex radio (dual‑5 GHz or 6 GHz); plus dedicated 4th scanning radio; integrated BLE IoT radio
Cisco Catalyst 9100 – An innovative series of access to the Internet of the Corporate Plan, which are equipped with a state -of -the -art hardware part and support modern patented Technologies and techniques Cisco.
The units of this level are profiled on modern high -tech firms and businesses that value high level of productivity and safety.
The line of new access points Cisco Catalyst 9100 represented by several subseries, both for external and internal location of access points. The features of series can be attributed - Wi-Fi 6-th generation or 802.11ax, which provides triple increase in Internet signal reception and transmission speed, simultaneous operation on all frequencies, interface for connecting to a multigigabit network, new power-saving mode extends battery life, trust technology support ensuring software and hardware authenticity, Wi-Fi 6 certification, three radio modules: 2,4 GHz, 5 GHz and low energy Bluetooth (BLE) 5,0, support OFDMA and MU-MIMO 4x4
Specifications of access point Cisco CW9166D1-E:
| Specification | Details |
|---|---|
| Model | CW9166D1‑E |
| Product Series | Cisco Catalyst 9166 Series – Wi‑Fi 6E indoor AP with directional antenna |
| Radio Configuration | Three 4×4 MU‑MIMO radios: 2.4 GHz, 5 GHz, and XOR flex radio (dual‑5 GHz or 6 GHz); plus dedicated 4th scanning radio; integrated BLE IoT radio |
| Antenna | Built-in directional antenna optimized for high-ceiling and focus coverage; eliminates need for external antennas |
| Aggregate PHY Rate | Up to ~7.8 Gbps (tri‑radio 4×4) |
| Modulation & Features | OFDMA, MU‑MIMO UL/DL, TWT, BSS coloring, zero-wait DFS, CleanAir Pro, XOR flex radio |
| Environmental Sensors | Integrated sensors for air quality (TVOC), temperature, humidity |
| Ethernet Port | 1 × Multigigabit RJ‑45 (up to 5 Gbps) |
| USB Interface | USB 2.0 Type‑A, up to 4.5 W (requires 802.3bt) |
| Power Requirements & Consumption | • 802.3af: control-only, ~14 W• 802.3at: full radios, ~25.5 W• 802.3bt: full radios + USB, ~30.5 W; DC input option (54 V) |
| Mounting Options | Wall or ceiling with articulating arm and AIR‑AP‑Bracket‑2; ideal for high ceilings/hallways |
| Management Modes | On-premises via Catalyst 9800/WLC or Catalyst Center; cloud-managed via Meraki Dashboard—convertible in-field |
| Security & RF Management | Secure Boot, Trust Anchor, CleanAir Pro, WIPS/WIDS |
| Environmental Specs | Indoor only; complies with low-power indoor 6 GHz regulations; typical indoor temps |
| Software Support | Cisco IOS XE 17.12.1+; supports controller platforms Catalyst 9800-L/40/80/CL |
| Regulatory Domain | “E” region variant (specific countries); full 6 GHz indoor support |
| Part Number | CW9166D1‑E |
| Warranty & Licensing | Cisco limited lifetime hardware warranty; Cisco DNA or Meraki licenses required |
| condition | new |
|---|
