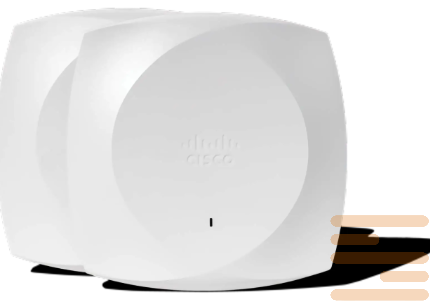

Access point Cisco CW9172H
Cisco Wireless 9172 Series – Wi‑Fi 7 indoor, wall‑plate form Tri‑radio 2×2:2 on 2.4 GHz, 5 GHz, 6 GHz + dedicated tri‑band scanning radio + IoT (BLE 6) radio
Cisco Catalyst 9100 – An innovative series of access to the Internet of the Corporate Plan, which are equipped with a state -of -the -art hardware part and support modern patented Technologies and techniques Cisco.
The units of this level are profiled on modern high -tech firms and businesses that value high level of productivity and safety.
The line of new access points Cisco Catalyst 9100 represented by several subseries, both for external and internal location of access points. The features of series can be attributed - Wi-Fi 6-th generation or 802.11ax, which provides triple increase in Internet signal reception and transmission speed, simultaneous operation on all frequencies, interface for connecting to a multigigabit network, new power-saving mode extends battery life, trust technology support ensuring software and hardware authenticity, Wi-Fi 6 certification, three radio modules: 2,4 GHz, 5 GHz and low energy Bluetooth (BLE) 5,0, support OFDMA and MU-MIMO 4x4
Specifications of access point Cisco CW9172H:
| Specification | Details |
|---|---|
| Model | CW9172H |
| Product Series | Cisco Wireless 9172 Series – Wi‑Fi 7 indoor, wall‑plate form |
| Datasheet Published | Last month (~June 2025) |
| Radio Configuration | Tri‑radio 2×2:2 on 2.4 GHz, 5 GHz, 6 GHz + dedicated tri‑band scanning radio + IoT (BLE 6) radio |
| Aggregate PHY Frame Rate | Up to 9 Gbps across three client radios (5.764 Gbps @6 GHz, 2.882 Gbps @5 GHz, 0.344 Gbps @2.4 GHz) |
| Antenna Configuration | Six integrated omnidirectional internal antennas |
| Antenna Peak Gain | • 2.4 GHz: 4 dBi• 5 GHz: 7 dBi• 6 GHz: 6 dBi• IoT: 1.25 dBi |
| Ethernet Interfaces | • 1 × 2.5 Gbps uplink (100 M/1 G/2.5 G)• 3 × 1 Gbps LAN (one supports PoE‑out)• 1 × passthrough port• Console port (RJ‑45, 115200 bps) |
| Power Over Ethernet | Power‑in: 802.3at/802.3bt (Class 5)/UPoE (42‑57 V); Power‑out: 802.3af on LAN port |
| Power Consumption | • PoE+ (802.3at): typical 12.8 W, idle ~10.7 W• PoE++/UPoE (802.3bt): up to 41 W (with PoE‑out) |
| USB Interface | Not available (USB only on CW9172I) |
| Mounting Options | Wall plate, desk mount, port-lock and spacer accessories (CW‑MNT‑H1/‑H3, CW‑ACC‑DESK1/‑SPACER1, MA‑MNT‑MR‑H1A, AIR‑AP‑BRACKET‑W4) |
| Wi‑Fi Features | 802.11be: 4096‑QAM, OFDMA UL/DL, MU‑MIMO, MLO, TWT, BSS coloring, preamble puncturing, DFS + 24×7 WIDS/WIPS & spectrum analytics via dedicated scanning radio |
| Management Options | Meraki Cloud (Dashboard) or Catalyst 9800 Series / Catalyst Center |
| Security & Analytics | WPA3, 802.1X, Air Marshal WIPS, layer‑7 traffic shaping, presence/location analytics via BLE/GNSS |
| Environmental / Physical Specs | Dimensions: 5.1″ × 7.0″ × 1.0″ (13 × 18 × 2.6 cm); Weight: ~1.26 lb (572 g); Operating temp 0–50 °C; 10–95 % RH non-condensing; MTBF ~912k h @25 °C |
| Part Number | CW9172H |
| Warranty | Cisco limited-lifetime hardware warranty (Meraki SKU also covers advanced replacement) |
| condition | new |
|---|
