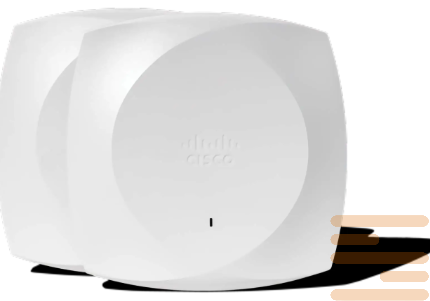

Access point Cisco CW9172I
Cisco Wireless 9172 Series – Wi‑Fi 7 indoor AP IEEE 802.11be (Wi‑Fi 7), backward-compatible with 802.11ax/ac/n/g/b/a
Cisco Catalyst 9100 – An innovative series of access to the Internet of the Corporate Plan, which are equipped with a state -of -the -art hardware part and support modern patented Technologies and techniques Cisco.
The units of this level are profiled on modern high -tech firms and businesses that value high level of productivity and safety.
The line of new access points Cisco Catalyst 9100 represented by several subseries, both for external and internal location of access points. The features of series can be attributed - Wi-Fi 6-th generation or 802.11ax, which provides triple increase in Internet signal reception and transmission speed, simultaneous operation on all frequencies, interface for connecting to a multigigabit network, new power-saving mode extends battery life, trust technology support ensuring software and hardware authenticity, Wi-Fi 6 certification, three radio modules: 2,4 GHz, 5 GHz and low energy Bluetooth (BLE) 5,0, support OFDMA and MU-MIMO 4x4
Specifications of access point Cisco CW9172I:
| Specification | Details |
|---|---|
| Model | CW9172I |
| Product Series | Cisco Wireless 9172 Series – Wi‑Fi 7 indoor AP |
| Datasheet Published | May 23, 2025 |
| Wi‑Fi Standards | IEEE 802.11be (Wi‑Fi 7), backward-compatible with 802.11ax/ac/n/g/b/a |
| Radio Configuration | Tri-radio 2×2:2 (2.4/5/6 GHz) or dual-radio 2×2:2 (2.4 GHz) + 4×4:4 (5 GHz); dedicated 4th scanning radio; BLE/IoT radio |
| Spatial Streams & PHY Rates | Up to 9 Gbps aggregate (tri-band); supports 2×2 on all bands or 4×4 on 5 GHz |
| Modulation & Features | 4096-QAM, OFDMA, MU-MIMO UL/DL, MLO, TWT, BSS coloring, preamble puncturing, MRC, DFS |
| Antennas | Internal omnidirectional:• 2.4 GHz: 4 dBi• 5 GHz: 5.5 dBi• 6 GHz: 6 dBi• IoT: 2 dBi |
| Ethernet Interface | 1 × multigigabit RJ‑45 (100 Mbps–2.5 Gbps) |
| USB Interface | USB 2.0 Type-A, 4.5 W (enabled with IEEE 802.3bt only) |
| Power Consumption | • PoE+ (802.3at): 25.5 W (tri-radio), USB disabled• PoE++ (802.3bt Class 5): 32 W with USB; USB = 4.5 W |
| Power Requirements | 802.3at/802.3bt/UPoE (42.5–57 V) |
| Operating Modes | Local, FlexConnect, Monitor, Sniffer, Site-survey, SDA/Fabric (OEAP not supported) |
| Dedicated Radios | Fourth tri-band scanning radio (WIDS/WIPS/spectrum analysis), fifth BLE IoT radio |
| Security & Analytics | WPA3, 802.1X, Secure Boot, Air Marshal, layer‑7 traffic shaping, presence/location analytics |
| Environmental Specs | Indoor operation: 0–50 °C; storage: –40–70 °C; 10–90% RH non-condensing |
| Physical Specs | Dimensions: 7.8″×7.8″×2.1″ (20×20×5.3 cm); Weight: ~1.9 lb (874 g) |
| Mounting | Ceiling/wall T‑rail brackets (AIR-AP-BRACKET-1/2) |
| Licensing & Management | Cloud-managed via Meraki Dashboard; also supported by Catalyst 9800 / Catalyst Center |
| Part Number | CW9172I (omnidirectional internal antennas) |
| Warranty | Cisco limited lifetime hardware warranty |
| condition | new |
|---|
