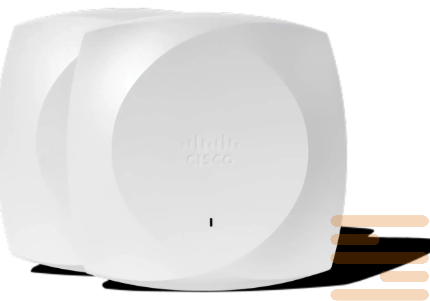

Access point Cisco CW9176D1
Cisco Wireless 9176 Series (Wi‑Fi 7 indoors) Internal directional antenna (approx. 80° × 80° beam width, peak 7 dBi at 2.4 GHz)
Cisco Catalyst 9100 – An innovative series of access to the Internet of the Corporate Plan, which are equipped with a state -of -the -art hardware part and support modern patented Technologies and techniques Cisco.
The units of this level are profiled on modern high -tech firms and businesses that value high level of productivity and safety.
The line of new access points Cisco Catalyst 9100 represented by several subseries, both for external and internal location of access points. The features of series can be attributed - Wi-Fi 6-th generation or 802.11ax, which provides triple increase in Internet signal reception and transmission speed, simultaneous operation on all frequencies, interface for connecting to a multigigabit network, new power-saving mode extends battery life, trust technology support ensuring software and hardware authenticity, Wi-Fi 6 certification, three radio modules: 2,4 GHz, 5 GHz and low energy Bluetooth (BLE) 5,0, support OFDMA and MU-MIMO 4x4
Specifications of access point Cisco CW9176D1:
| Specification | Details |
|---|---|
| Model | CW9176D1 |
| Product Series | Cisco Wireless 9176 Series (Wi‑Fi 7 indoors) |
| Antenna Type | Internal directional antenna (approx. 80° × 80° beam width, peak 7 dBi at 2.4 GHz) |
| Use Case / Deployment | Ideal for warehouses, auditoriums, high ceilings; built-in directional coverage replaces external antennas |
| Radio Configuration | Tri‑radio 4×4:4—2.4 GHz XOR flex, 5 GHz, 6 GHz + dedicated scanning radio + BLE + UWB + GNSS |
| Spatial Streams / PHY Rates | Up to 12 SS aggregate; PHY up to 18 Gbps tri-band, 23 Gbps dual‑5 GHz |
| 802.11be / 802.11ax Features | 4096-QAM, OFDMA UL/DL, MU-MIMO, MLO, TWT, BSS coloring, preamble puncturing, 320 MHz on 6 GHz |
| Ethernet Port | 1 × RJ‑45 multigig (100 Mbps–10 Gbps) |
| USB & Ports | USB 2.0 host (9 W); console port; GPS/GNSS port; Kensington/security hasp |
| Power Requirements | PoE supported: 802.3af (staging only), 802.3at PoE+, and 802.3bt/UPoE (full operation) |
| Power Consumption | 30 W–52 W depending on configuration; full features require 802.3bt |
| Mounting Options | Standard ceiling/wall T‑rail; optional articulating arm bracket for directional alignment |
| Management Modes | Cloud (Meraki Dashboard) or on‑premises (Catalyst 9800 WLC or Catalyst Center) |
| Security & Analytics | WPA3, 802.1X, Air Marshal WIPS, Layer-7 traffic shaping, presence/location analytics via BLE/UWB/GNSS |
| Environmental Specs | Indoors: 0–50 °C, 10–90% RH non‑condensing |
| Dimensions & Weight | ~9.5″ × 9.5″ × 2.0″ (24 × 24 × 5.1 cm); ~3.4 lb (1.56 kg) |
| Licensing | Cisco Networking Subscription (Essentials/Advantage), unified SKU supports Meraki or Catalyst |
| Warranty | Cisco limited lifetime hardware warranty |
| condition | new |
|---|
