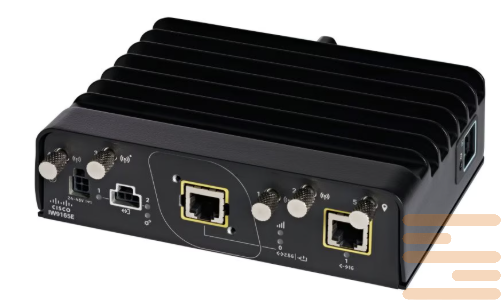

Access point Cisco IW9165DH-E-AP
Cisco Catalyst IW9165 Series (Heavy-Duty) IEEE 802.11a/b/g/n/ac/ax (Wi‑Fi 6E-ready, 5/6 GHz)
Cisco Catalyst 9100 – An innovative series of access to the Internet of the Corporate Plan, which are equipped with a state -of -the -art hardware part and support modern patented Technologies and techniques Cisco.
The units of this level are profiled on modern high -tech firms and businesses that value high level of productivity and safety.
The line of new access points Cisco Catalyst 9100 represented by several subseries, both for external and internal location of access points. The features of series can be attributed - Wi-Fi 6-th generation or 802.11ax, which provides triple increase in Internet signal reception and transmission speed, simultaneous operation on all frequencies, interface for connecting to a multigigabit network, new power-saving mode extends battery life, trust technology support ensuring software and hardware authenticity, Wi-Fi 6 certification, three radio modules: 2,4 GHz, 5 GHz and low energy Bluetooth (BLE) 5,0, support OFDMA and MU-MIMO 4x4
Specifications of access point Cisco IW9165DH-E-AP:
| Specification Category | Details |
|---|---|
| Model | IW9165DH‑E‑AP |
| Product Family | Cisco Catalyst IW9165 Series (Heavy-Duty) |
| Release & Datasheet Update | Datasheet published ~3 weeks ago (Jun 2025) |
| Wireless Standard | IEEE 802.11a/b/g/n/ac/ax (Wi‑Fi 6E-ready, 5/6 GHz) |
| Radios & Antenna | Two 2×2 MIMO radios (5 GHz & 5/6 GHz), internal directional antenna + external N‑type connectors |
| Spatial Streams / PHY Rate | Up to 2 spatial streams per radio; PHY rate up to 3.6 Gbps |
| URWB (Backhaul) Support | Cisco Ultra-Reliable Wireless Backhaul (≤10 ms latency, zero packet loss) |
| Mode Support | AP mode, Workgroup Bridge, URWB |
| Bluetooth | Bluetooth 5.0 radio |
| Ethernet Ports | 1× RJ‑45 1 Gb + 1× RJ‑45 2.5 Gb (PoE‑IN supported) |
| Protection Rating | IP66/67 rated for outdoor/industrial use |
| Environmental Specs | -40 °C to +70 °C; supports extreme conditions |
| Memory & Storage | 2 GB DRAM, 1 GB flash |
| Supported Data Rates | 5 GHz & 5/6 GHz: multiple legacy and HE modes up to MCS11, channels 20/40/80/160 MHz |
| External Antennas | 2 × N-type female ports; supports Cisco self-identifying antennas |
| Power Options | PoE-in (auto-detects injectors/cable) |
| Security & Software | Cisco IOS XE releases for URWB (17.17+); secure boot/trust anchor supported |
| Certifications/Warranty | UL/ATEX not specified; standard Cisco limited-lifetime warranty |
| condition | new |
|---|
