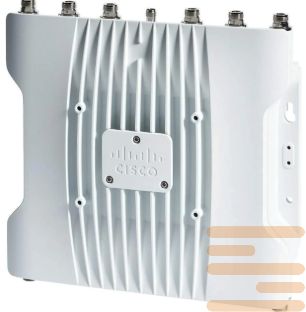

Access point Cisco IW9167EH-E-AP
3462 $
IW9167 11ax 6E AP 8 RF ports E domain Wi-Fi mode
Cisco Catalyst 9100 – An innovative series of access to the Internet of the Corporate Plan, which are equipped with a state -of -the -art hardware part and support modern patented Technologies and techniques Cisco.
The units of this level are profiled on modern high -tech firms and businesses that value high level of productivity and safety.
The line of new access points Cisco Catalyst 9100 represented by several subseries, both for external and internal location of access points. The features of series can be attributed - Wi-Fi 6-th generation or 802.11ax, which provides triple increase in Internet signal reception and transmission speed, simultaneous operation on all frequencies, interface for connecting to a multigigabit network, new power-saving mode extends battery life, trust technology support ensuring software and hardware authenticity, Wi-Fi 6 certification, three radio modules: 2,4 GHz, 5 GHz and low energy Bluetooth (BLE) 5,0, support OFDMA and MU-MIMO 4x4
Specifications of access point Cisco IW9167EH-E-AP:
| Specification Category | Details |
|---|---|
| Model | IW9167EH-E-AP |
| Product Family | Cisco Catalyst IW9167E Heavy Duty Series |
| Release Date / Last Updated | Series released May 20, 2022; Datasheet and “At-a-Glance” updated June 10, 2025 |
| Wireless Standard | IEEE 802.11ax (Wi‑Fi 6); 2.4 GHz, 5 GHz, and 5/6 GHz bands |
| Radio Setup | Tri-radio, each 4×4 MIMO (up to four spatial streams) |
| Operational Modes | Wi‑Fi 6 AP, Workgroup Bridge (WGB), Ultra-Reliable Wireless Backhaul (URWB) |
| Memory & Storage | 2 GB DDR4 RAM, 1 GB NAND flash |
| External Antenna Ports | 8 × N-type female + 1 × TNC GNSS port; supports external antenna options |
| Integrated Radios | BLE radio and barometer for IoT/location services |
| Ethernet Connectivity | 1 × mGig RJ‑45 (100 M–5 G) PoE-in; 1 × SFP (1 G/10 G) fiber port |
| Power Options | PoE-in (IEEE 802.3at/bt, Cisco UPOE) or 24–48 V DC; dual input |
| Ruggedness & Environmental Rating | IP66/67, hardened for shock/vibration; -40 °C to 70 °C (cold start to -50 °C) |
| Physical Dimensions & Weight | (Not specified for IH9167E in datasheet) Heavy-duty enclosure |
| GNSS / GPS | External GNSS via TNC connector for location/regulatory compliance |
| Software Support | Cisco Catalyst 9800 controllers running IOS XE (17.9+) with IW and URWB support from 17.18.1 |
| Security / Trust Anchor | Secure boot, image signing, Cisco Trust Anchor hardware integrity |
| Certifications | IP67, hazardous location versions (IW9167EH‑HZ) certified UL, ATEX, IECEx |
| Accessories & Mounts | M12 adapters, power injectors/adapters, pole/DIN brackets, GNSS antenna, etc. |
| Warranty | Standard Cisco limited lifetime hardware warranty (as per series) |
| condition | new |
|---|
