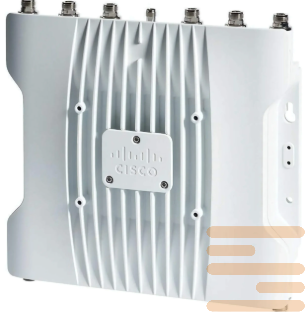

Access point Cisco IW9167IH-E-AP
Cisco Catalyst IW9167I Heavy Duty Series Wi‑Fi 6 (802.11ax) with 6 GHz hardware support (Wi‑Fi 6E-ready)
Cisco Catalyst 9100 – An innovative series of access to the Internet of the Corporate Plan, which are equipped with a state -of -the -art hardware part and support modern patented Technologies and techniques Cisco.
The units of this level are profiled on modern high -tech firms and businesses that value high level of productivity and safety.
The line of new access points Cisco Catalyst 9100 represented by several subseries, both for external and internal location of access points. The features of series can be attributed - Wi-Fi 6-th generation or 802.11ax, which provides triple increase in Internet signal reception and transmission speed, simultaneous operation on all frequencies, interface for connecting to a multigigabit network, new power-saving mode extends battery life, trust technology support ensuring software and hardware authenticity, Wi-Fi 6 certification, three radio modules: 2,4 GHz, 5 GHz and low energy Bluetooth (BLE) 5,0, support OFDMA and MU-MIMO 4x4
Specifications of access point Cisco IW9167IH-E-AP:
| Specification | Details |
|---|---|
| Model | IW9167IH-E-AP |
| Product Family | Cisco Catalyst IW9167I Heavy Duty Series |
| Release / Datasheet Updated | Series released ~3 weeks ago; datasheet updated June 10, 2025 |
| Wireless Standard | Wi‑Fi 6 (802.11ax) with 6 GHz hardware support (Wi‑Fi 6E-ready) |
| Radio Configuration | Tri-radio: 2.4 GHz, 5 GHz, 6 GHz; each 4×4 MIMO with up to four spatial streams |
| Integrated Antennas | Yes – omnidirectional built-in antennas |
| IoT/BLE Radio & GNSS | 2.4 GHz BLE radio and integrated GNSS antenna |
| Memory & Storage | 2 GB DDR4 RAM, 1 GB NAND flash |
| Ethernet Connectivity | 1× Multi‑Gigabit RJ‑45 PoE‑IN (100 M–5 G via 802.3at/bt/UPOE); 1× SFP port (up to 10 Gbps) |
| Power Options | PoE-in or 24–48 VDC dual inputs |
| Physical Design & Rating | Cast-aluminum enclosure, IP67-rated, extreme‑temperature hardened |
| Operating Temperature | –40 °C to +70 °C (supports cold start at –50 °C) |
| Operational Modes | Wi‑Fi 6 AP mode, Workgroup Bridge (WGB), Ultra‑Reliable Wireless Backhaul (URWB) |
| Security & Platform Support | Secure Boot, Trust Anchor, 9800 series controllers (IOS XE 17.12.1+); pointer to URWB features |
| Certifications & Ruggedness | Industrial-grade IP67, meets shock/vibration standards; supports industrial certifications (e.g., EN 50155 via series) |
| Mounting Options | Pole, wall, or DIN-rail mounting via bracket |
| SFP Options | Supports up to 10 Gbps fiber via SFP modules (e.g., SFP-10G-LR10-I) |
| Licensing | Cisco DNA Essentials / Advantage industrial wireless; URWB optional licenses |
| Warranty | Standard Cisco limited lifetime hardware warranty |
| condition | new |
|---|
