Access point Huawei AirEngine 5762-10

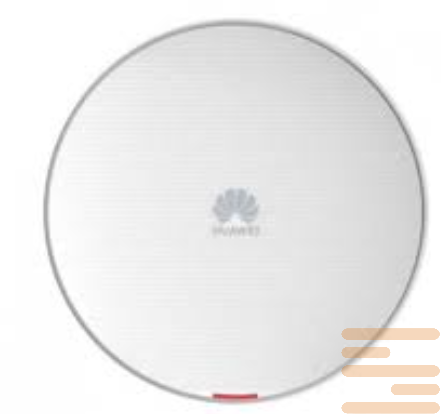

Huawei AirEngine 5762-10 Wi-Fi 6 (802.11ax) indoor access point
AirEngine 5700 - these are classic standard wireless access points to the Internet (AP) Wi-Fi 6 (802.11ax), manufactured by Huawei. Models support flexible switching between dual and triple radio modes to serve different clients and traffic types.
Devices can reach speeds of up to 5.37 Gbit / with, and after downloading the license RTU They are capable of achieving speeds of up to 5.95 Gbit / with.
Huawei AirEngine 5700 have integrated smart antennas to transmit Wi-Fi signals along with users, which significantly improves the simplicity and convenience of users working with a wireless network. All of the above qualities make access points ideal for use in offices, cafes, restaurants, office buildings and entertainment centers.
The technology of intelligent antenna array, which is successfully implemented in the design of access points, provides targeted signal coverage for mobile terminals, reduces interference and improves the quality of the broadcast signal.
In addition, they implement switching at the millisecond level when moving STA.
Interface USB can be used for external power supplies, external IoT expansion and storage.
Built-in IoT module that supports IoT expansion such as BLE 5.0, ZigBee, RFID and Thread
Also, the presented models support O&M on serial interface Bluetooth via integrated Bluetooth and CloudCampus APP, as well as accurate location of Bluetooth terminals by cooperating with the location server.
supports three operating modes Fat, Fit, and Cloud.
Technical specifications of the access point Huawei AirEngine 5762-10:|
Model |
AirEngine 5762-10 |
|
Technical specifications |
|
|
Dimensions (Diameter x Height) |
Φ180 mm x 35 mm |
|
Weight |
0.46 kg |
|
Interface type |
1 x 10M/100M/1GE (RJ45) NOTE : The GE electrical port supports the PoE input. |
|
LED indicator |
Indicates the power-on, startup, running, alarm, and fault states of the system. |
|
Power specifications |
|
|
Power input |
• DC: 12 V ± 10% • PoE power supply: in compliance with 802.3af |
|
Maximum power consumption |
• 11.2 W NOTE : The actual maximum power consumption depends on local laws and regulations. |
|
Environmental specifications |
|
|
Operating temperature |
-10°C to +50°C |
|
Storage temperature |
-40°C to +70°C |
|
Operating humidity |
5% to 95% (non-condensing) |
|
Altitude |
-60 m to +5000 m |
|
Atmospheric pressure |
53 kPa to 106 kPa |
|
Radio specifications |
|
|
Antenna type |
Built-in smart antennas |
|
Antenna gain |
• 2.4 GHz: 4 dBi • 5 GHz: 5 dBi NOTE • The gains above are the single-antenna peak gains. • The equivalent antenna gain after all 2.4 GHz or 5 GHz antennas are combined is 2 dBi in 2.4 GHz or 3 dBi in 5 GHz. |
|
Maximum number of SSIDs for each radio |
≤ 16 |
|
Maximum number of users |
• ≤ 256 NOTE : The actual number of users varies according to the environment. |
|
Maximum transmit power |
• 2.4 GHz: 20 dBm (combined power) • 5 GHz: 20 dBm (combined power) NOTE : The actual transmit power depends on local laws and regulations. |
|
Power increment |
1 dBm |
