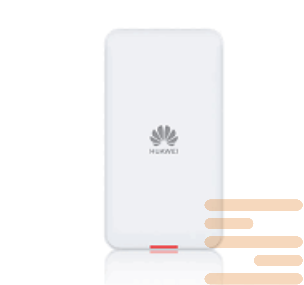

Access point Huawei AirEngine 5773-23WP
Wall-plate Access Point (Wi-Fi 7 / 802.11be) 2.4 GHz: 2×2 ; 5 GHz: 2×2 (total 4 streams)
AirEngine 5700 – These are classic standard wireless access points to the Internet (AP) Wi-Fi 6 (802.11ax), produced by a company Huawei. Models support flexible switching between double and triple radio to serve different customers and traffic types.
Devices can reach speed up to 5.37 GbIT/s, and after downloading a license RTU they are able to reach speed up to 5.95 GbIT/with.
Huawei AirEngine 5700 have integrated intellectual antennas to transmit Wi-Fi signals along with users, it significantly increases the simplicity and convenience of users with wireless network. All of the above qualities make access points ideal for use in offices, cafes, restaurants, office buildings and entertainment centers.
The technology of intellectual antenna lattice, which is successfully implemented in the design of access points provides a targeted signal coating for mobile terminals, reduce obstacles and improve the quality of the signal that is broadcast.
In addition, they sell switching at milliseconds as you move STA.
Interface USB can be used for external power sources, external expansion of IoT and storage.
Built -in IOT module that supports IoT extensions, such as BLE 5.0, ZigBee, RFID and Thread
Also presented models support O&M Based on the Bluetooth sequential interface through integrated Bluetooth and CloudCampus APP, as well as accurately determining the location of Bluetooth terminals by working with a location server.
Supports three operating modes Fat, Fit and Cloud.
Specifications of access point Huawei AirEngine 5773-23WP:
| Specification | Details |
|---|---|
| Product Type | Wall-plate Access Point (Wi-Fi 7 / 802.11be) |
| Model / Variant | AirEngine 5773-23WP |
| Radio / Bands | Dual-radio: 2.4 GHz + 5 GHz |
| MIMO / Spatial Streams | 2.4 GHz: 2×2 ; 5 GHz: 2×2 (total 4 streams) |
| Peak Aggregate Data Rate | 3.57 Gbps |
| Maximum Users | up to ~1,200 (depends on environment) |
| Antenna Type | Built-in smart (co-planar) antennas |
| Transmit Power | 2.4 GHz: up to 23 dBm (combined) 5 GHz: up to 23 dBm (combined) |
| Interfaces / Ports | 1 × 2.5GE RJ45 (PoE-IN) 5 × GE RJ45 ports USB 2.0 (for IoT / extension) |
| Power Input | DC: 43.2 V to 57.6 V PoE: IEEE 802.3bt / at / af |
| Maximum Power Consumption | ~15.9 W (without USB and PoE OUT) |
| Dimensions (H × W × D) | 185 mm × 86 mm × 45 mm |
| Weight (without packaging) | 0.412 kg |
| Operating Temperature | 0 °C to +40 °C |
| Storage Temperature | –40 °C to +70 °C |
| Humidity | 5% to 95% (non-condensing) |
| Operating Altitude | –60 m to +5,000 m |
| Surge / Protection | PoE / Ethernet ports: differential mode 0.5 kV ; common mode 4 kV |
| PoE OUT Support | Yes — GE3 and GE4 ports support PoE OUT (total up to 32 W) |
| USB Port Power | USB port can supply 2.5 W or 5 W (with appropriate software version) |
| BLE / O&M | Built-in BLE (version support) for Bluetooth console / O&M |
| Installation Modes | Wall, ceiling, junction box installs supported |
| Supported Standards & Features | 802.11a/b/g/n/ac/ax/be Multi-Link Operation (MLO), 4096-QAM, Wi-Fi 7 enhancements, smart antenna control, Fit AP / cloud-managed mode |
| condition | new |
|---|
