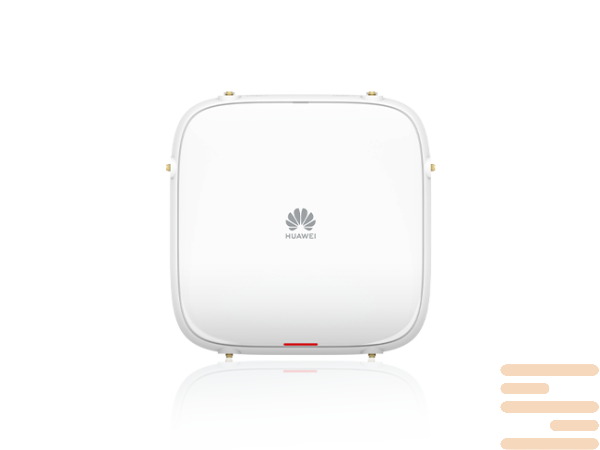

Access point Huawei AirEngine 6776-58TI
Indoor IoT / Wi-Fi 7 Access Point IEEE 802.11be (Wi-Fi 7), backwards compatible with a/b/g/n/ac/ax
Highly effective access points Huawei AirEngine 6700 are modern innovative new generation equipment for wireless networks Wi-Fi 6. Models are equipped with integrated intellectual antennas and compatible with standards 802.11n, 802.11.
Access points support a wide bandwidth and increased degree of parallelism, it significantly increases the convenience and ease of work of users in wireless networks. Access points are used to provide high-speed unintestant Internet connections in office centers, government and educational institutions, etc..
Features and benefits of access points Huawei AirEngine 6700:
- Fully supported modulation 1024QAM and technologies 2x2 MIMO, They provide radio interface speed up to 1.2 GBPS in the range of 5 GHZ and 1.774 GBPS for various hardware devices.
- Modulation OFDMA gives the opportunity to several users at the same time to receive and send data, so the delay is reduced at times and the network level is increased.
- Access points to ensure maximum safety combine measures for both leading and wireless networks. This provides a multi -level, echelorated protection of your confidential data.
- Points Supports frequency ranges 2.4G and 5G. 5G pre -access function allows access points to direct STA On the frequency range of 5 GHZ, thus reducing the load and the interference is taken in the frequency range 2,4 GHz.
Specifications of access point Huawei AirEngine 6776-58TI:
| Specification | Details |
|---|---|
| Product Type | Indoor IoT / Wi-Fi 7 Access Point |
| Model / Variant | AirEngine 6776-58TI |
| Wi-Fi Standard | IEEE 802.11be (Wi-Fi 7), backwards compatible with a/b/g/n/ac/ax |
| Radio Configuration / Mode | Triple-radio: 2.4 GHz + 5 GHz + 6 GHz Alternate dual-radio mode: 2.4 GHz + 5 GHz |
| Spatial Streams (MIMO) | Mode 1: 2.4 GHz: 2×2 ; 5 GHz: 4×4 ; 6 GHz: 2×2 Mode 2: 2.4 GHz: 4×4 ; 5 GHz: 4×4 |
| Peak Aggregate Data Rate | 7.89 Gbps |
| Maximum Number of Users | 1,800 (theoretical, depends on environment) |
| Antenna Type | Built-in smart antennas |
| Antenna Gain (per chain) | 2.4 GHz: 4 dBi 5 GHz: 5 dBi 6 GHz: 5 dBi |
| Transmit Power | Mode 1: • 2.4 GHz (2×2): 23 dBm • 5 GHz (4×4): 26 dBm • 6 GHz (2×2): 23 dBm Mode 2: • 2.4 GHz (4×4): 26 dBm • 5 GHz (4×4): 26 dBm |
| Interfaces / Ports | 1 × 5GE RJ45 (PoE-In) 1 × 10GE SFP+ (PoE-In) 1 × GE RJ45 (management / uplink) USB 2.0 port 2 × IoT card slots (PCIe) BLE (Bluetooth) |
| Power Input | DC: 43.2 V to 57.6 V PoE supply compatible with IEEE 802.3bt/at/af (dual PoE inputs for redundancy) |
| Maximum Power Consumption | ~ 23.9 W (excluding USB / IoT cards) |
| Dimensions (H × W × D) | 61 mm × 220 mm × 220 mm |
| Weight | ~ 1.47 kg |
| Operating Temperature | –10 °C to +50 °C |
| Storage Temperature | –40 °C to +70 °C |
| Operating Humidity | 5% to 95% (non-condensing) |
| Operating Altitude | –60 m to +5,000 m |
| Surge / Protection | Surge protection on PoE / Ethernet ports (differential and common mode) |
| USB / IoT | USB port (2.5 W / 5 W) 2 IoT slots to support modules like ZigBee, RFID etc. BLE 5.4 |
| MTBF / MTTR | MTBF: ~ 94.34 years MTTR: ~ 2 hours |
| Radio / Protocols Supported | 2.4 GHz: 802.11b/g/n/ax/be 5 GHz: 802.11a/n/ac/ac Wave 2/ax/be 6 GHz: 802.11a/ax/be |
| Other Features | Smart antenna beam control Wi-Fi Shield (enhanced security) Automatic mode switching between triple / dual radio Support for fit AP mode / cloud managed mode |
| condition | new |
|---|
