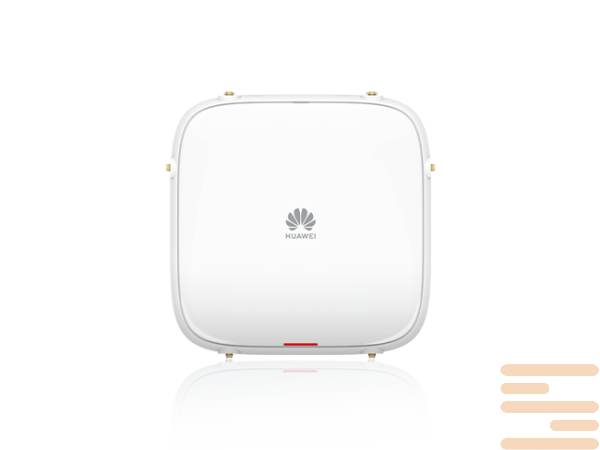

Access point Huawei AirEngine 6776-X6ETH
Indoor / Hybrid Access Point (Wi-Fi 7) 2.4 GHz: 2×2 ; 5 GHz: 4×4 ; 6 GHz: 2×2
Highly effective access points Huawei AirEngine 6700 are modern innovative new generation equipment for wireless networks Wi-Fi 6. Models are equipped with integrated intellectual antennas and compatible with standards 802.11n, 802.11.
Access points support a wide bandwidth and increased degree of parallelism, it significantly increases the convenience and ease of work of users in wireless networks. Access points are used to provide high-speed unintestant Internet connections in office centers, government and educational institutions, etc..
Features and benefits of access points Huawei AirEngine 6700:
- Fully supported modulation 1024QAM and technologies 2x2 MIMO, They provide radio interface speed up to 1.2 GBPS in the range of 5 GHZ and 1.774 GBPS for various hardware devices.
- Modulation OFDMA gives the opportunity to several users at the same time to receive and send data, so the delay is reduced at times and the network level is increased.
- Access points to ensure maximum safety combine measures for both leading and wireless networks. This provides a multi -level, echelorated protection of your confidential data.
- Points Supports frequency ranges 2.4G and 5G. 5G pre -access function allows access points to direct STA On the frequency range of 5 GHZ, thus reducing the load and the interference is taken in the frequency range 2,4 GHz.
Specifications of access point Huawei AirEngine 6776-X6ETH:
| Specification | Details |
|---|---|
| Product Type | Indoor / Hybrid Access Point (Wi-Fi 7) |
| Model / Variant | AirEngine 6776-X6ETH |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac/ax/be |
| Radios / Bands | Triple-radio: 2.4 GHz, 5 GHz, 6 GHz |
| MIMO Spatial Streams | 2.4 GHz: 2×2 ; 5 GHz: 4×4 ; 6 GHz: 2×2 |
| Maximum Throughput | Up to 7.89 Gbps |
| Maximum Users | Up to 1,800 concurrent users |
| Antenna Type | External antennas (RP-SMA connectors) |
| Transmit Power | 2.4 GHz: up to 23 dBm ; 5 GHz: up to 26 dBm ; 6 GHz: up to 23 dBm |
| Interfaces | 1 × 10GE SFP+ (PoE-In) ; 1 × 5GE RJ45 (PoE-In) ; 1 × GE RJ45 ; 1 × USB 2.0 ; 1 × DC 48 V input |
| Power Supply | 43.2 V to 57.6 V DC ; PoE: IEEE 802.3bt/at/af ; Dual PoE inputs for redundancy |
| Dimensions (H × W × D) | 61 mm × 220 mm × 220 mm |
| Weight | ~1.43 kg |
| Installation Options | Wall, ceiling, junction box |
| Environmental Limits | Operating temperature: –10 °C to +50 °C ; Storage: –40 °C to +70 °C |
| Humidity | 5% to 95% (non-condensing) |
| Operating Altitude | –60 m to +5,000 m |
| Surge Protection | Ethernet and antenna ports: 6 kA / 6 kV |
| MTBF | ~68.95 years |
| MTTR | ~2 hours |
| Security Features | WPA3, 802.1X authentication, secure boot, encrypted management |
| Advanced Features | OFDMA, MU-MIMO, Multi-Link Operation (MLO), dynamic channel management, intelligent roaming |
| condition | new |
|---|
