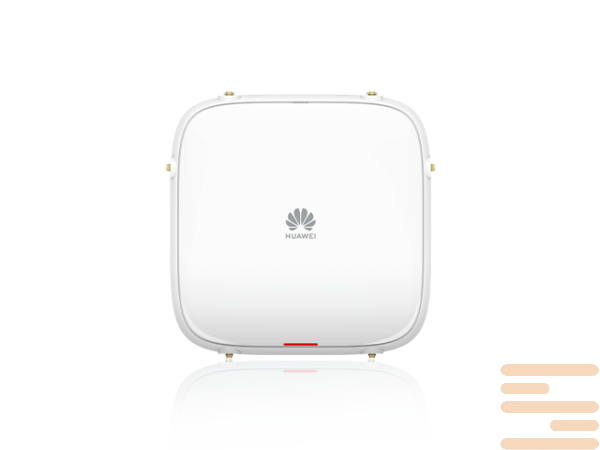

Access point Huawei AirEngine 6776-X6H
SKU
AirEngine 6776-X6H
EAN:
21487
Condition:
new
Stock:
available on order
Lead time:
25-35 days
Indoor Access Point / Wi-Fi 7 AP Dual-radio (2.4 GHz + 5 GHz) or triple-radio mode (2.4 / 5 / 6 GHz)
Category: Huawei Wireless
Highly effective access points Huawei AirEngine 6700 are modern innovative new generation equipment for wireless networks Wi-Fi 6. Models are equipped with integrated intellectual antennas and compatible with standards 802.11n, 802.11.
Access points support a wide bandwidth and increased degree of parallelism, it significantly increases the convenience and ease of work of users in wireless networks. Access points are used to provide high-speed unintestant Internet connections in office centers, government and educational institutions, etc..
Features and benefits of access points Huawei AirEngine 6700:
- Fully supported modulation 1024QAM and technologies 2x2 MIMO, They provide radio interface speed up to 1.2 GBPS in the range of 5 GHZ and 1.774 GBPS for various hardware devices.
- Modulation OFDMA gives the opportunity to several users at the same time to receive and send data, so the delay is reduced at times and the network level is increased.
- Access points to ensure maximum safety combine measures for both leading and wireless networks. This provides a multi -level, echelorated protection of your confidential data.
- Points Supports frequency ranges 2.4G and 5G. 5G pre -access function allows access points to direct STA On the frequency range of 5 GHZ, thus reducing the load and the interference is taken in the frequency range 2,4 GHz.
Specifications of access point Huawei AirEngine 6776-X6H:
Access points support a wide bandwidth and increased degree of parallelism, it significantly increases the convenience and ease of work of users in wireless networks. Access points are used to provide high-speed unintestant Internet connections in office centers, government and educational institutions, etc..
Features and benefits of access points Huawei AirEngine 6700:
- Fully supported modulation 1024QAM and technologies 2x2 MIMO, They provide radio interface speed up to 1.2 GBPS in the range of 5 GHZ and 1.774 GBPS for various hardware devices.
- Modulation OFDMA gives the opportunity to several users at the same time to receive and send data, so the delay is reduced at times and the network level is increased.
- Access points to ensure maximum safety combine measures for both leading and wireless networks. This provides a multi -level, echelorated protection of your confidential data.
- Points Supports frequency ranges 2.4G and 5G. 5G pre -access function allows access points to direct STA On the frequency range of 5 GHZ, thus reducing the load and the interference is taken in the frequency range 2,4 GHz.
Specifications of access point Huawei AirEngine 6776-X6H:
| Specification | Details |
|---|---|
| Product Type | Indoor Access Point / Wi-Fi 7 AP |
| Series | AirEngine 6776 |
| Model / Variant | 6776-X6H |
| Wi-Fi Standard | IEEE 802.11be (Wi-Fi 7) |
| Radio Bands / MIMO | Dual-radio (2.4 GHz + 5 GHz) or triple-radio mode (2.4 / 5 / 6 GHz) |
| Spatial Streams | 2.4 GHz: 4x4 ; 5 GHz: 4x4 |
| Maximum Device Throughput | 7.14 Gbps (aggregate) |
| Antenna Type | Built-in dynamic-zoom smart antennas |
| Antenna Gain (per chain) | 2.4 GHz: 4 dBi ; 5 GHz: 5 dBi |
| Radio Transmit Power (combined) | 2.4 GHz: up to 26 dBm ; 5 GHz: up to 26 dBm |
| Ports / Interfaces | 1 × 10GE optical (SFP+) with PoE-In support ; 1 × 5GE RJ45 (PoE-In) ; 1 × GE RJ45 |
| Power Input | DC: 43.2 V to 57.6 V ; Dual PoE inputs (5GE + 10GE) for redundancy, supports IEEE 802.3bt/at/af |
| Maximum Number of Users | Up to 1,200 |
| USB Port | USB 2.0 (for extension / IoT) |
| BLE | Built-in Bluetooth for O&M |
| Operating Temperature | –10 °C to +50 °C |
| Storage Temperature | –40 °C to +70 °C |
| Operating Humidity | 5% to 95% (non-condensing) |
| Operating Altitude | –60 m to +5,000 m |
| MTBF | ~94.34 years |
| MTTR | ~2 hours |
| condition | new |
|---|
