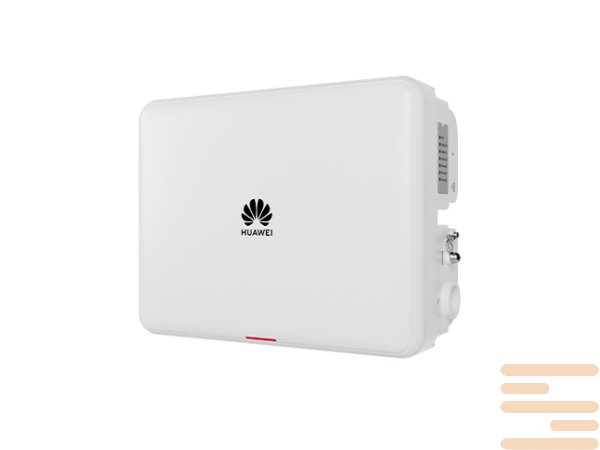

Access point Huawei AirEngine 6776I-X6TH
Outdoor Wi-Fi 7 Access Point (802.11be) 2.4 GHz: 2×2 ; 5 GHz: 2×2 ; 6 GHz: 4×4
AirEngine 5700 – These are classic standard wireless access points to the Internet (AP) Wi-Fi 6 (802.11ax), produced by a company Huawei. Models support flexible switching between double and triple radio to serve different customers and traffic types.
Devices can reach speed up to 5.37 GbIT/s, and after downloading a license RTU they are able to reach speed up to 5.95 GbIT/with.
Huawei AirEngine 5700 have integrated intellectual antennas to transmit Wi-Fi signals along with users, it significantly increases the simplicity and convenience of users with wireless network. All of the above qualities make access points ideal for use in offices, cafes, restaurants, office buildings and entertainment centers.
The technology of intellectual antenna lattice, which is successfully implemented in the design of access points provides a targeted signal coating for mobile terminals, reduce obstacles and improve the quality of the signal that is broadcast.
In addition, they sell switching at milliseconds as you move STA.
Interface USB can be used for external power sources, external expansion of IoT and storage.
Built -in IOT module that supports IoT extensions, such as BLE 5.0, ZigBee, RFID and Thread
Also presented models support O&M Based on the Bluetooth sequential interface through integrated Bluetooth and CloudCampus APP, as well as accurately determining the location of Bluetooth terminals by working with a location server.
Supports three operating modes Fat, Fit and Cloud.
Specifications of access point Huawei AirEngine 6776I-X6TH:
| Specification | Details |
|---|---|
| Product Type | Outdoor Wi-Fi 7 Access Point (802.11be) |
| Model / Variant | AirEngine 6776I-X6TH |
| Radio / Bands | Triple-radio: 2.4 GHz + 5 GHz + 6 GHz |
| MIMO Spatial Streams | 2.4 GHz: 2×2 ; 5 GHz: 2×2 ; 6 GHz: 4×4 |
| Peak Aggregate Data Rate | 13.66 Gbps |
| Antenna Type | Built-in directional antennas |
| Antenna Gain (per chain) | 2.4 GHz: 10 dBi ; 5 GHz: 11 dBi ; 6 GHz: 12 dBi |
| Beamwidth / Radiation Pattern | 2.4 GHz: ~70° horizontal / 35° vertical 5 GHz: ~60° horizontal / 20° vertical 6 GHz: ~55° horizontal / 20° vertical |
| Interfaces / Ports | 1 × 10GE optical (SFP+) (PoE-In) 1 × 10GE electrical (RJ45, PoE-In) 1 × GE electrical (RJ45, PoE-In) USB port |
| Power Input | Dual PoE-In (IEEE 802.3bt / at) Backup DC: 18 V to 60 V |
| Maximum Transmit Power | (Triple-radio 6G mode) • 2.4 GHz: up to 25 dBm/chain (28 dBm combined) • 5 GHz: up to 20 dBm/chain (23 dBm combined) • 6 GHz: up to 21 dBm/chain (27 dBm combined) |
| Operating Temperature | –40 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Operating Humidity | 0% to 100% RH |
| Storage Humidity | 5% to 95% RH (non-condensing) |
| Altitude / Operating Altitude | –60 m to +5,000 m |
| Surge / Lightning Protection | Ethernet ports: 6 kA / 6 kV; common/differential mode protections |
| Inrush / Surge Modes | Differential mode: 1 kV; Common mode: 6 kV |
| IP Rating | IP68 (waterproof, dustproof) |
| USB | USB 2.0 (power 2.5 W or 5 W) |
| BLE | BLE 5.2 for O&M / local management |
| PoE OUT | Not supported |
| MTBF | ~81.14 years |
| MTTR | ~2 hours |
| Operation Modes | Fit mode, Fat mode, Cloud managed mode |
| Maximum Number of Users | Up to ~1,800 clients (actual depends on environment) |
| Protection Features | Wide temperature range, surge protection, industrial design, waterproof/dustproof |
| condition | new |
|---|
