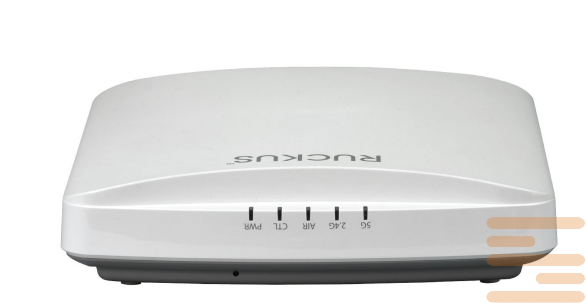

Access point Ruckus 901-R550-WW00
R550 dual-band (5GHz and 2.4GHz concurrent) 802.11ax
wireless access point, 2x2:2 + 2x2:2 streams, adaptive
antennas, dual ports, onboard BLE and Zigbee, PoE support.
Plenum rated. Includes adjustable acoustic drop ceiling
bracket. Does not include power adaptor.
Access points Ruckus – Wireless access points of internal and external type for any budgets, requirements for productivity and deployment scenarios. If your building materials block Wi-Fi signal penetration or you need to ensure wireless communication in high user density conditions, improve employee expectations, and attract more customers, our access points will provide secure and reliable network access regardless of the surrounding environment. All access points Ruckus equipped with advanced patented technologies that can significantly improve the quality of communication and customer service.
Specifications of access point Ruckus 901-R550-WW00:
| Specification | Value |
|---|---|
| Product Name / Model | Ruckus R550 (901-R550-WW00) |
| Product Type | Indoor dual-band Wi-Fi 6 (802.11ax) Access Point |
| Wi-Fi Standards Supported | IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Maximum Combined PHY Rate | Up to 1.78 Gbps |
| Radios / Bands | 2 radios: 2.4 GHz, 5 GHz (dual-band concurrent) |
| Radio Chains & Spatial Streams | 2×2:2 in each band |
| Channel Width | 20 / 40 / 80 MHz |
| Maximum Transmit Power | 2.4 GHz: up to 24 dBm5 GHz: up to 28 dBm |
| Antenna Type & Gain | BeamFlex+ adaptive antennas with polarization diversity, up to 3 dBi gain |
| Receive Sensitivity | 2.4 GHz: –95 dBm (MCS0 HT20)5 GHz: –98 dBm (typical) |
| Concurrent Clients Supported | Up to 512 |
| Ethernet Interfaces | 2 × 1 Gbps Ethernet ports |
| IoT Support | Integrated IoT radio (BLE, Zigbee, Thread) |
| Management / Controller Modes | Ruckus ZoneDirector, Ruckus SmartZone, Ruckus Cloud, Ruckus Unleashed |
| Security Features | WPA2, WPA3, WPA3-SAE, OWE, PMF (802.11w), Dynamic PSK, WIPS/WIDS |
| Additional Wi-Fi Features | OFDMA, MU-MIMO, WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v, ChannelFly, SmartMesh |
| Operating Temperature Range | 0°C to +50°C |
| Dimensions (W × D × H) | 15.0 × 15.0 × 3.5 cm |
| Weight | 0.45 kg |
| Power Options | 802.3af/at PoE, 12V DC input |
| Power Consumption | Up to 13W (PoE) |
| condition | new |
|---|
