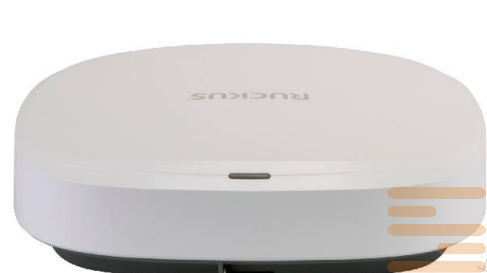

Access point Ruckus 901-R770-WW00
RUCKUS R770 Wi-Fi 7 tri-band concurrent wireless Access
Point with 2x2:2 (2.4GHz) + 4x4:4 (5GHz) + 2x2:2 (6GHz).
Wi-Fi 7 in all three bands. 6GHz LPI mode and SP mode
support with AFC. Software configurable to 2x2 (2.4GHz) +
4x4 (5GHz) dual-band mode. BeamFlex+, one 10/5/2.5/1-
Gigabit Ethernet backhaul, one 1-Gigabit port, PoH/uPoE/
802.3bt PoE support, onboard BLE and Zigbee selectable
IoT radio, USB 2.0, TPM 2.0, and Secure Boot. Adjustable
acoustic drop ceiling bracket included. Power adapter not
included. Includes Limited Lifetime Warranty.
Access points Ruckus – Wireless access points of internal and external type for any budgets, requirements for productivity and deployment scenarios. If your building materials block Wi-Fi signal penetration or you need to ensure wireless communication in high user density conditions, improve employee expectations, and attract more customers, our access points will provide secure and reliable network access regardless of the surrounding environment. All access points Ruckus equipped with advanced patented technologies that can significantly improve the quality of communication and customer service.
Specifications of access point Ruckus 901-R770-WW00:
| Specification | Value |
|---|---|
| Product Name / Model | Ruckus R770 (901-R770-WW00) |
| Product Type | Indoor tri-band Wi-Fi 7 Access Point |
| Wi-Fi Standards Supported | IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Maximum Combined PHY Rate | Up to 12.0 Gbps |
| Radios / Bands | 3 radios: 2.4 GHz, 5 GHz, 6 GHz (tri-band concurrent) |
| Radio Chains & Spatial Streams | 4×4:4 in each band |
| Channel Width | 20 / 40 / 80 / 160 / 320 MHz |
| Maximum Transmit Power | 2.4 GHz: up to 25 dBm5 GHz: up to 28 dBm6 GHz: up to 25 dBm |
| Antenna Type & Gain | BeamFlex+ adaptive antennas with polarization diversity, up to 5 dBi gain |
| Receive Sensitivity | 2.4 GHz: –97 dBm (MCS0 HT20)5 GHz: –100 dBm (typical)6 GHz: –96 dBm (typical) |
| Concurrent Clients Supported | Up to 1,536 |
| Ethernet Interfaces | 1 × 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps port1 × 1 Gbps Ethernet port |
| IoT Support | Integrated IoT radio (BLE and Zigbee) |
| Management / Controller Modes | Ruckus One, Ruckus SmartZone, Ruckus Unleashed |
| Security Features | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3, WPA3-SAE, OWE, PMF (802.11w), Dynamic PSK, DPSK3, WIPS/WIDS, TPM 2.0, Secure Boot |
| Additional Wi-Fi Features | WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v, MBO, Multi-Link Operation (MLO), Preamble Puncturing, ChannelFly, Web Auth, Guest Access, Captive Portal, Hotspot, WISPr |
| Operating Temperature Range | 0 °C to +50 °C (32 °F to 122 °F) |
| Antenna Patterns | Over 4,000 unique antenna patterns per band |
| condition | new |
|---|
