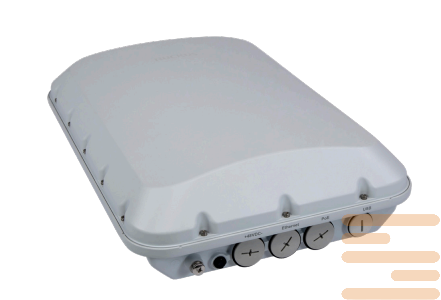

Access point Ruckus 901-T670-WW51
RUCKUS T670sn Wi-Fi 7 tri-band outdoor wireless Access
Point software switchable internal sectorized narrow
and wide antenna 2x2:2 (2.4GHz) + 2x2:2 (5GHz) + 2x2:2
(6GHz). Wi-Fi 7 in all three bands. 6GHz SP mode support
with AFC Software configurable to 2x2 (2.4GHz) + 4x4
(5GHz) dualband mode.
One 5/2.5/1-Gigabit Ethernet backhaul one 1-Gigabit port,
PoH/uPoE/ 802.3bt PoE support TPM 2.0, and Secure Boot.
Built-in GPS. Power adapter not included. Includes one
year limited warranty. Mounting brackets included.
Access points Ruckus – Wireless access points of internal and external type for any budgets, requirements for productivity and deployment scenarios. If your building materials block Wi-Fi signal penetration or you need to ensure wireless communication in high user density conditions, improve employee expectations, and attract more customers, our access points will provide secure and reliable network access regardless of the surrounding environment. All access points Ruckus equipped with advanced patented technologies that can significantly improve the quality of communication and customer service.
Specifications of access point Ruckus 901-T670-WW51:
| Specification | Value |
|---|---|
| Product Name / Model | Ruckus T670 (901-T670-WW51) |
| Product Type | Outdoor dual-band Wi-Fi 7 Access Point |
| Wi-Fi Standards Supported | IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Maximum Combined PHY Rate | Up to 9.34 Gbps |
| Radios / Bands | 2 radios: 2.4 GHz, 5 GHz (dual-band concurrent) |
| Radio Chains & Spatial Streams | 4×4:4 in each band |
| Channel Width | 20 / 40 / 80 / 160 / 320 MHz |
| Maximum Transmit Power | 2.4 GHz: up to 28 dBm5 GHz: up to 30 dBm |
| Antenna Type & Gain | BeamFlex+ adaptive antennas with polarization diversity, up to 6 dBi gain |
| Receive Sensitivity | 2.4 GHz: –97 dBm (MCS0 HT20)5 GHz: –100 dBm (typical) |
| Concurrent Clients Supported | Up to 1,024 |
| Ethernet Interfaces | 1 × 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps port1 × 1 Gbps Ethernet port |
| IoT Support | Integrated IoT radio (BLE and Zigbee) |
| Management / Controller Modes | Ruckus One, Ruckus SmartZone |
| Security Features | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3, WPA3-SAE, OWE, PMF (802.11w), Dynamic PSK, DPSK3, WIPS/WIDS, TPM 2.0, Secure Boot |
| Additional Wi-Fi Features | WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v, MBO, Multi-Link Operation (MLO), Preamble Puncturing, ChannelFly, Web Auth, Guest Access, Captive Portal, Hotspot, WISPr |
| Operating Temperature Range | –40 °C to +65 °C (–40 °F to 149 °F) |
| Weather Rating | IP67 outdoor weatherproof enclosure |
| Antenna Patterns | Over 4,000 unique antenna patterns per band |
| condition | new |
|---|
