Controller Aruba (HPE) R7H97A
SKU
R7H97A
€18,351.15
EAN:
20297
Condition:
new
Stock:
available on order
Lead time:
25-35 days
GPL price:
35123 $

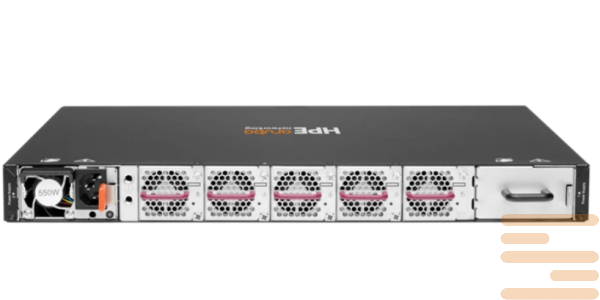

Aruba 9240 (RW) Campus Gateway.
Category: Aruba Wireless
Controllers Aruba (HPE) provide centralized management of wireless access points. In addition to their main feature they support WIDS/WIPS, can act as VPN concentrators as well as inter-networking screens with maintenance of network addresses (NAT) and filtrations at applications level (Layer 7).
The line is represented — up to 2000 access points and up to 32 thousand. customers. Controllers can be combined by increasing the total capacity of access points and customers.
Specifications controller Aruba (HPE) R7H97A:
| Specification | Details |
|---|---|
| Product Name / Model | Aruba 9240 (RW) Campus Gateway (R7H97A) |
| Series / Family | 9200 Series Campus Gateway |
| Form Factor | 1U rack-mountable, 1.73” (H) × 17.4” (W) × 15.6” (D) |
| Weight | Approx. 8.2 kg (18.08 lb) |
| Interfaces | 4 × SFP28 (25 Gb)1 × RJ-45 management1 × RJ-45 console1 × USB-C console2 × USB 3.0 Type-A |
| Expansion Slots | 1 reserved expansion slot (up to 5 I/O slots depending on configuration) |
| Power Consumption | Idle: ~115 WMax: ~190 W (≈648 BTU/hr) |
| Power Supply | Supports redundant power supplies |
| Cooling / Airflow | 5 internal fan trays, rear-to-front airflow |
| Performance (Base/Silver/Gold) | Throughput: 20 Gbps / 30 Gbps / 40 GbpsAPs supported: 512 / 1,024 / 2,048Devices supported: 16,384 / 24,576 / 32,768 |
| Firewall Sessions | Up to ~2,000,000 concurrent sessions |
| Security Features | Layer 4–7 stateful firewall, policy enforcement, dynamic segmentation, ClearPass integration |
| High Availability | Clustering, N+1 / NxN redundancy, live upgrade, zero-touch provisioning |
| Unified Communications | QoS optimization for Teams, Zoom, Skype, Wi-Fi Calling, FaceTime, etc. |
| Operating Temperature | 0 °C to 55 °C |
| Compliance | Meets major safety and EMC standards (UL, EN, FCC Class B, etc.) |
| condition | new |
|---|
