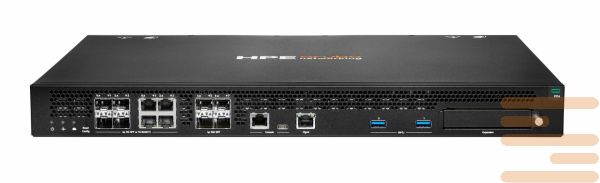

Controller Aruba (HPE) R9M45A
SKU
R9M45A
€9,729.90
EAN:
20299
Condition:
new
Stock:
available on order
Lead time:
25-35 days
GPL price:
18623 $
HPE ANW 9114 Hybrid Gateway.
Category: Aruba Wireless
Controllers Aruba (HPE) provide centralized management of wireless access points. In addition to their main feature they support WIDS/WIPS, can act as VPN concentrators as well as inter-networking screens with maintenance of network addresses (NAT) and filtrations at applications level (Layer 7).
The line is represented — up to 2000 access points and up to 32 thousand. customers. Controllers can be combined by increasing the total capacity of access points and customers.
Specifications controller Aruba (HPE) R9M45A:
| Specification | Details |
|---|---|
| Product Name / Model | HPE Aruba Networking 9114 Hybrid Gateway / Controller (R9M45A) |
| Series / Family | 9100 Series Hybrid Gateway |
| Form Factor | 1U rack-mountable |
| Dimensions (H × W × D) | 1.7" × 17.4" × 15.6" approximately |
| Weight | Approx. 6.2 kg |
| Interfaces / Ports | 4 × 10GbE SFP+ ports4 × combo SFP/1GbE copper ports1 × RJ-45 management port1 × USB-C console1 × USB 3.0 Type-A |
| Expansion Slots | 1 expansion slot |
| Throughput | Up to 20 Gbps firewall throughput; 10GbE fiber connectivity enabling max ~20 Gbps capacity |
| Supported Scale | Up to 4K APs and 10K clients, suitable for medium branches, large branches, small campuses |
| Security / Segmentation | Dynamic segmentation, role-based policy enforcement, cloud-native AOS-10 with Aruba Central |
| High Availability Features | Live upgrades, clustering, redundancy, SD-Branch, VPN concentrator, always-on connectivity |
| Power Consumption / Input | Max ~185 W; input voltage 100–240 V |
| Environmental Metrics | MTBF ~280,165 hOperating temp: 0–40 °C / Storage: –40–70 °COperating humidity: 10–90 %Heat dissipation ~631 BTU/h |
| Rack Compatibility | 1U rack-mountable |
| Additional Features | Cloud-managed, SD-Branch capabilities, advanced routing and security functions |
| condition | new |
|---|
