controllers Aruba (HPE) Provide centralized control of wireless access points. In addition to their main function, they support WIDS/WIPS, can act as VPN concentrators, as well as firewalls with support for network address translation (NAT) and filtering at the application level (Layer 7).
The line is represented by controller models for both small offices, supporting up to 16 access points, and for large projects — up to 2000 access points and up to 32 thousand. clients. Controllers can be combined to increase the total capacity of access points and clients.

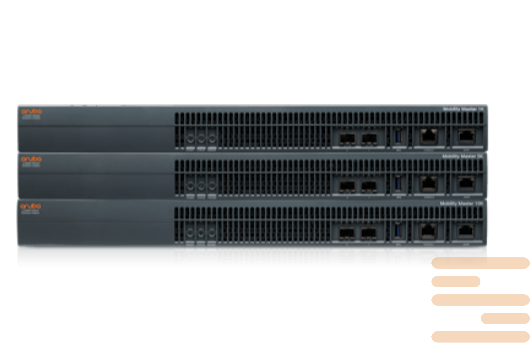

Specifications controller Aruba (HPE) JY791A:
|
MODEL AND CAPACITY
|
- Aruba Mobility Master Virtual Appliance
- MM-VA-50
- Number of devices: 50
- Number of clients: 500
- Number of controllers: 5
- MM-VA-500
- Number of devices: 500
- Number of clients: 5,000
- Number of controllers: 50
- MM-VA-1K
- Number of devices: 1,000
- Number of clients: 10,000
- Number of controllers: 100
- MM-VA-5K
- Number of devices: 5,000
- Number of clients: 50,000
- Number of controllers: 500
- MM-VA-10K
- Number of devices: 10,000
- Number of clients: 100,000
- Number of controllers: 1,000
- Aruba Mobility Master Hardware Appliance
- MM-HW-1K
- Number of devices: 1,000
- Number of clients: 10,000
- Number of controllers: 100
- MM-HW-5K
- Number of devices: 5,000
- Number of clients: 50,000
- Number of controllers: 500
- MM-HW-10K
- Number of devices: 10,000
- Number of clients: 100,000
- Number of controllers: 1,000
|
|
ENVIRONMENTAL
|
- Operating temperature range: 0°C to 40°C (-40°F to 104°F)
- Operating humidity: 10% to 90% (RH) non-condensing
- Storage temperature range: -40°C to 70°C (-40°F to 158°F)
- Storage humidity: 10% to 95% (RH) non-condensing
- Operating altitude: Up to 10,000 feet
|
|
REGULATORY SKU INFORMATION
|
- Regulatory Model: ARCNMMHW
|
|
DIMENSIONS AND WEIGHT
|
- (H) 4.4 cm x (W) 44.2 cm x (D) 40.1 cm (1.73" x 17.40" x 15.79")
- Weight 7.2 kg (15.87 lbs)
|
|
INTERFACES AND INDICATORS
|
- Two 10GBASE-X (SFP+) ports
- One 1GBASE-T Management port
- One USB 3.0
- One RJ45 Console port
- Port LINK/ACT and status LEDs
- Front panel LEDs – Power, Status, Peered
|
|
POWER SUPPLY SPECIFICATIONS
|
- Dual 400-watt load shared redundant configuration
- Input: 100-240V AC
- Output: 12V DC
- AC Input Current: 6.0 A max
- AC Input Frequency: 50-60 Hz
|
|
ACOUSTIC NOISE
|
- Sound pressure: 57 dBA*
- Sound power: 64.4dBA**
- Sound power per ETSI 300 753; Sound pressure per ISO 7779
* Measured @ rear center
** Nominal fan speed @ room temperature
|
|
POWER CONSUMPTION
|
- 120W (Ubuntu running all cores, memory test, 10G traffic, this may vary by 10% based on software config)
|
|
REGULATORY AND SAFETY COMPLIANCE
|
- FCC Part 15 Class A CE
- Industry Canada Class A
- VCCI Class A (Japan)
- EN 55032 Class A (CISPR 32 Class A), EN 61000-3,
- EN 61000-4-2, EN 61000-4-3, EN 61000-4-4,
- EN 61000-4-5, EN 61000-4-6, EN 61000-4-8,
- EN 61000-4-11, EN 55024, AS/NZS 3548
- UL 60950, EN60950
- CAN/CSA 22.2 #60950
- CE mark, cTUVus, CB, C-tick, Anatel, NOM, MIC
|
|
MINIMUM ARUBAOS RELEASE FOR THE MOBILITY MASTER HARDWARE
|
|
|
|
WARRANTY
|
- Hardware: 1 year parts/labor*
- Software: 90 days*
* Extended with support contract.
|
