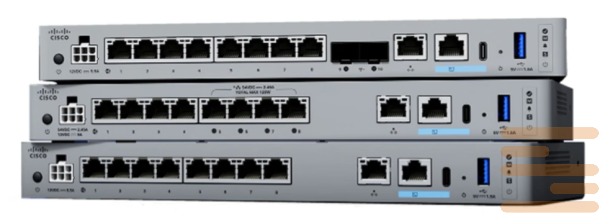

Firewall Cisco CSF1230-TD-K9
Secure Firewall 1230 security appliance with Threat Defense software
Series Cisco Secure Firewall 1200 is a family of modern internet screens designed to protect and connect remote branches, sales points and small offices. These devices integrate corporate security policy Cisco in distributed network structures, providing high levels of protection while maintaining stable work and performance.
The performance of the 1200 series devices is a powerful network processor Cisco QuantumFlow, which ensures efficient traffic filtering and deep data analysis in real time. Even with high load of equipment retains high speed of packet processing, so that not VI >Improvement of the user's experience. Average throughput with intrusion prevention enabled is achieved 750 MbIT/s, and when working via VPN - up to 1,2 GbIT/with.
Switches of this series are equipped with four to eight gigabit Ethernet ports and, depending on the model, support fiber optic SFP-modules. This allows flexibly adaptation to various use scenarios - from connecting standard workstations to the organization of a protected intermedial canal through fiber. Devices support a wide range of network technologies, including Layer 2 and Layer 3 switching, virtual LANs, and routing.
On the software level switches are integrated with the system Cisco SecureX, which provides centralized management and monitoring of security policies. Devices are also compatible with a cloud solution Cisco Defense Orchestrator and local manager Cisco Secure Firewall Manager, which simplifies administration in both small and large networks. Equipment meets international security standards including Common Criteria EAL4+ and FIPS 140‑2, which makes it suitable for use in organizations with high information security requirements.
The compact form factor allows you to install devices as a standard rack and on the desktop, providing flexibility during installation. Energy consumption varies from 60 to 90 W> Depending on the configuration and mode of operation that makes these devices an energy efficient solution for permanent operation.
Cisco Secure Firewall 1200 Series – This is a reliable solution for network safety in small and medium -sized businesses, as well as in state structures and corporate branches. Reliability, productivity and compliance with strict safety requirements make these switches the perfect choice for professional use.
Technical characteristics of a network screen Cisco CSF1230-TD-K9:
| Specification | Cisco Secure Firewall 1230 (CSF1230‑TD‑K9) |
|---|---|
| Model / SKU | 1230 / CSF1230‑TD‑K9 |
| Software Image | Cisco Secure Firewall Threat Defense (FTD) |
| Form Factor | 1U rack-mountable (desktop/wall-mount kit optional) |
| Firewall Throughput | Up to 18 Gbps (diagnostic likely 13–18 Gbps) |
| IPS (Threat Defense) Throughput | Up to 9–11 Gbps |
| IPsec VPN Throughput | Up to 13–22 Gbps (13 Gbps TCP FastPath, up to 22 Gbps per architecture) |
| TLS (Hardware Decryption) | 2.5 Gbps |
| New Connections per Second | Typically ~50,000 (with AVC); up to 350,000 |
| Max Concurrent Sessions | ~300,000–400,000 |
| Max VPN Peers | 500 |
| Interfaces | 8× 1 GbE (CSF‑1230) + 4× SFP+ |
| Console / Management Ports | USB‑C console, RJ‑45 serial console, dedicated GigE management, USB‑A 3.0 |
| Memory / Storage | 16 GB RAM; 960 GB NVMe SSD |
| Power Consumption (Max) | ~57 W max |
| Cooling / Airflow | Front-to-back blower fan |
| Dimensions (H×W×D) | 4.37 × 28.49 × 43.81 cm (1.72 × 11.22 × 17.25 in) |
| Weight | 4.24 kg (9.35 lb) |
| Operating Temp / Humidity / Altitude | 0–40 °C; 5–85 % non-condensing; up to 10,000 ft altitude |
| Certifications & Compliance | UL/CSA/EN 60950‑1, IEC 62368‑1, FCC Class A, CE EMC, etc. |
| Security & Management Features | Hardware root-of-trust; HA support; centralized management via FMC; on-box FDM; ASDM UI |
| condition | new |
|---|
