Firewalls Cisco Secure Firewall 3100 Series belong to the corporate class. They are able to provide you and your business with stable and secure work in a local, individual, fast-growing company..
Firewalls of this series provide uninterrupted operation of the corporate network, ease of management and high speed of deployment. Cisco Secure Firewall 3100 Series - this is a family of four versions that are used to protect against possible virus threats and unauthorized intrusions into your database.
Hardware devices increase overall fault tolerance and data transfer rate.
Each model in the line delivers never-before-seen performance across multiple firewall usage scenarios, even with advanced third-party threat protection options and features running.
These high technological capabilities are provided due to the presence in the design of the firewalls of the modern architecture of the CPU in theMbintegration with specially designed and integrated hardware that optimizes and enhances all existing firewall, cryptography, and threat inspection functions.
3100 firewall series Cisco supports clustering for maximum performance with increased port density and support for Q-in-Q features that provide a wider range of device applications.
Q-in-Q features allow you to expand and scale as your project progresses. The bandwidth of the firewall allows devices to be used in several variations from the edges of the Internet network to data centers and cloud reserved storage.
Firewalls Cisco Secure Firewall 3100 Series operate under software control ASA or Firewall Threat Defense (FTD).
Platforms (Firewalls Cisco Secure Firewall 3100 Series) can be launched, deployed, both in the mode of firewalls, and in the mode of a separate, independent dedicated IPS.
For integrated kits and passive interfaces series Cisco 3100 supports Q-in-Q (stack VLAN) up to two titles 802.1Q in the package. The platform also supports network modules FTW (fail-to-wire).

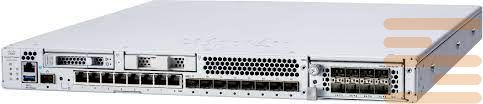

Specifications firewall Cisco Firepower FPR3140-ASA-K9:
|
Datasheet Cisco FPR3140-ASA-K9
|
|
Interfaces
|
8x RJ45, 8 x RJ45, 8x 1/10/25G SFP+, 4X40G NM
|
|
Integrated network management ports
|
1x 1/10G SFP
|
|
Serial port
|
1x RJ-45 console
|
|
USB
|
1x USB 3.0 Type-A (900mA)
|
|
Storage
|
1x 900 GB, 1x spare slot
|
|
System Performance
|
|
Stateful inspection firewall throughput
|
49.0 Gbps
|
|
Stateful inspection firewall throughput (multiprotocol)
|
43.0 Gbps
|
|
Concurrent firewall connections
|
10 million
|
|
New connections per second
|
1,100,000
|
|
IPsec VPN throughput
(450B UDP L2L test)
|
17 Gbps
|
|
Projected IPsec VPN throughput
(450B UDP L2L test) with VPN Offload (ASA 9.18)
|
33.0 Gbps
|
|
Maximum VPN Peers
|
20,000
|
|
Security contexts (included; maximum)
|
2; 40
|
|
High availability
|
Active/active and active/ standby
|
|
Clustering
|
8
|
|
Scalability
|
VPN Load Balancing
|
|
Centralized management
|
Centralized configuration, logging, monitoring, and reporting are performed by Cisco Security Manager or alternatively in the cloud with Cisco Defense Orchestrator
|
|
Adaptive Security Device Manager
|
Web-based, local management for small-scale deployments
|
|
Dimensions
|
|
H x W x D
|
1.75 x 17 x 20 in.
(4.4 x 43.3 x 50.8 cm)
|
|
Weight
|
25 lb (11.4 kg) 2 x power supplies, 1 x NM, fan module, 1x SSD
|
|
Form factor (rack units)
|
1RU
|
|
Rack mountable
|
Yes. Fixed mount brackets optional.
(2- post). Mount rails included (4-post EIA- 310-D rack)
|
|
Form factor (rack units)
|
1RU
|
|
Rack mountable
|
Yes. Fixed mount brackets optional.
(2- post). Mount rails included (4-post EIA- 310-D rack)
|
|
Power
|
|
Power supply configuration
|
Single 400W AC, Dual 400W AC optional.
Single/Dual 400W DC optional
|
|
AC input voltage
|
100 to 240V AC
|
|
AC maximum input current
|
< 6A at 100V
|
|
AC maximum output power
|
400W
|
|
AC frequency
|
50 to 60 Hz
|
|
Redundancy
|
1+1 AC or DC with dual supplies
|
|
Fans
|
2 hot-swappable fan modules (with 2 fans each)
|
|
Noise
|
65 dBA@ 25C
74 dBA maximum
|
|
Environment
|
|
Temperature: operating
|
32 to 104°F
(0 to 40°C)
|
|
Temperature: nonoperating
|
-4 to 149°F
(-20 to 65°C)
|
|
Humidity: operating
|
10 to 85%
noncondensing
|
|
Humidity: nonoperating
|
5 to 95% noncondensing
|
|
Altitude: operating
|
10,000 ft (max)
|
|
Altitude: nonoperating
|
40,000 ft (max)
|
