Features and principle of operation of firewalls Cisco Firepower Series 4100
Network class screen - an electronic unit that combines several computers or other digital devices into one single local network, allowing them to freely exchange information, content.
Firewalls Cisco Firepower Series 4100 – is a family of NGFW platforms that aim to protect the network from malicious unofficial attacks. Devices are oriented to work in difficult conditions in data processing centers, thanks to excellent high throughput.
Screens in this design provide ideal protection against malicious attacks and operate at high speeds.. Execution,В form factorВ devices are very compactВ (1U), which allows them to be used in small spaces..
Firewalls support network traffic offloading, software administration, and provide management of security services based onВ ON RESTful API. The devices fully comply with the standards for the formation of a network information flowВ NEBS. Platforms in this version are able to run software (Software)В Cisco Secure Firewall ASA or Cisco Secure Firewall Threat Defense (FTD).

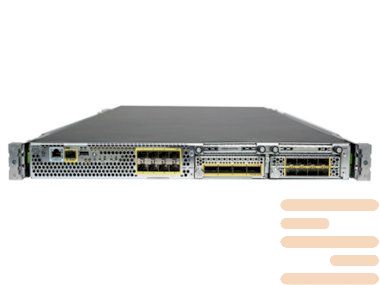

On the front of the screensВ Cisco Firepower Series 4100В there are eight built-in, integratedВ SFP+ slots, as well asВ 2 compartmentВ under which it is fashionable to connect network modules with optical portsВ 8 ports under SFP+ (10GB)В transceivers orВ 4 port under QSFP+ (40GB) transceivers.
In addition to the above features, firewalls haveВ 2 compartmentsВ to connectВ SSDВ disks, while one slot is occupied by default, and the second is open for connecting the necessary expansion.
The back panel of the new generation firewalls is equipped with two compartments for power supplies:
- 4110, 4115 and 4120: one PSU AC, second power supply AC or DC Optional.
- 4125, 4140, 4145 and 4150: two PSUs AC DC Optional.
SpecificationsВ firewallВ Cisco Firepower Series 4100 FPR4125-NGFW-K9:
|
В Dimensions (HВ xВ WВ xВ D)
|
В 1.75 x 16.89 x 29.7 in. (4.4 x 42.9 x 75.4 cm)
|
|
В Form factor (rackВ units)
|
В 1RU
|
|
Supervisor
|
В Cisco Firepower 4000 Supervisor with 8 x 10 Gigabit Ethernet ports and 2 Network Module (NM) slots for I/O expansion
|
|
В В Network modules
|
В
8 x 10 Gigabit Ethernet Enhanced Small Form-Factor Pluggable (SFP+) network modules
4 x 40 Gigabit Ethernet Quad SFP+ network modules
8-port 1Gbps copper, FTW (fail to wire) Network Module
6-port 1 Gbps SX Fiber FTW (fail to wire) Network Module
6-port 10Gbps SR Fiber FTW (fail to wire) Network Module
6-port 10Gbps LR Fiber FTW (fail to wire) Network Module
|
|
В Maximum number of interfaces
|
В Up to 24 x 10 Gigabit Ethernet (SFP+) interfaces; up to 8 x 40 Gigabit Ethernet (QSFP+) interfaces with 2 network modules
|
|
Integrated network management ports
|
В 1
1 Gigabit Ethernet
Supports 1-G fiber or copper SFP
|
|
В Serial port
|
В 1 x RJ-45 console
|
|
В USB
|
В 1 x USB 2.0
|
|
AC input voltage
|
В 100 to 240V AC
|
|
AC maximum output power
|
В 13A
|
|
AC maximum input current
|
В 1100W
|
|
AC frequency
|
В 50 to 60 Hz
|
|
AC efficiency
|
В >92% at 50% load
|
|
DC input voltage
|
В В -40V to -60VDC
|
|
DC maximum input current
|
В 27A
|
|
В Fans
|
950W
|
|
В Noise
|
В >92.5% at 50% load
|
|
В Rack mountable
|
В В 1+1
|
|
В Weight
|
В 6 hot-swappable fans
|
|
Noise
|
78 dBA
|
|
Rack mountable
|
Yes, mount rails included (4-post EIA-310-D rack)
|
