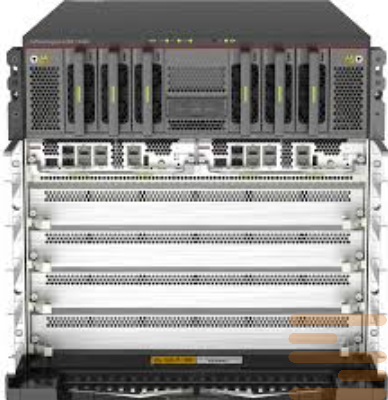

Firewall Huawei USG12000-H6
SKU
USG12000-H6
EAN:
21484
Condition:
new
Stock:
available on order
Lead time:
25-35 days
Network Firewall / AI Firewall LPU options: 16-port 100GBase-QSFP28 + 24-port 10GBase-SFP+; or 8-port 100GBase-QSFP28 + 24-port 10GBase-SFP+
Category: Huawei Firewall
Series HiSecEngine USG12000 - These are firewall leaders with artificial intelligence (II) the terabete class produced by the company Huawei.
They eliminate all existing virtual threats on the verge of network directly in real time. Internet screen provides better security capabilities for large corporate networks and data centers.
Have apparatus unique advanced hardware architecture and a set of energy saving technologies.
This series provides a comprehensive, highly reliable operator-class architecture that supports multiple reliability mechanisms such as dual main processor redundancy (MPU), Hot reservation (HSB), Continuous routing (NSR) and a smooth restart (GR). The integrated algorithm for verifying software integrity prevents the start of unauthorized software (Software), Creating a safe base for the global network.
Specifications Huawei USG12000-H6:
They eliminate all existing virtual threats on the verge of network directly in real time. Internet screen provides better security capabilities for large corporate networks and data centers.
Have apparatus unique advanced hardware architecture and a set of energy saving technologies.
This series provides a comprehensive, highly reliable operator-class architecture that supports multiple reliability mechanisms such as dual main processor redundancy (MPU), Hot reservation (HSB), Continuous routing (NSR) and a smooth restart (GR). The integrated algorithm for verifying software integrity prevents the start of unauthorized software (Software), Creating a safe base for the global network.
Specifications Huawei USG12000-H6:
| Specification | Details |
|---|---|
| Product Type | Network Firewall / AI Firewall |
| Series | HiSecEngine USG12000-H6 |
| Chassis Slots | 6 LPU/SPU slots; 2 MPU slots; 2 fan modules vertical; power module slots horizontal |
| Rack Height | 8.8 U |
| Dimensions without packaging (base chassis) | 392.12 mm × 442 mm × 515.5 mm (H × W × D) |
| Dimensions with cable management frames | 392.12 mm × 442 mm × 585.5 mm |
| Dimensions with packaging | 670 mm × 730 mm × 770 mm |
| Weight without packaging (base config) | 33.6 kg |
| Weight without packaging (full configuration) | 68.52 kg |
| Interface Density | LPU options: 16-port 100GBase-QSFP28 + 24-port 10GBase-SFP+; or 8-port 100GBase-QSFP28 + 24-port 10GBase-SFP+ |
| Power Supply Types Supported | AC, DC, High-Voltage DC (HVDC) |
| Rated Input Voltages | AC: 110 V / 220 V; DC: –48 V / –60 V / +48 V; HVDC: 240 V / 336 V |
| Input Voltage Range | AC: 90 V to 290 V, 45-65 Hz; DC: approx. –38.4 V to –72 V (or 38.4 V to 57.6 V for some DC variants); HVDC: 190 V to 400 V |
| Maximum Input Current | DC: 63 A; AC/HVDC: 10 A or 16 A depending on voltage |
| Cooling | Pluggable fan modules, redundant |
| Power Supply Redundancy | Supported (multiple modes: N+1, N+N, etc.) |
| MTBF | ~ 32.04 years |
| MTTR | ~ 2.42 hours |
| Availability | ~ 0.9999954 |
| condition | new |
|---|
