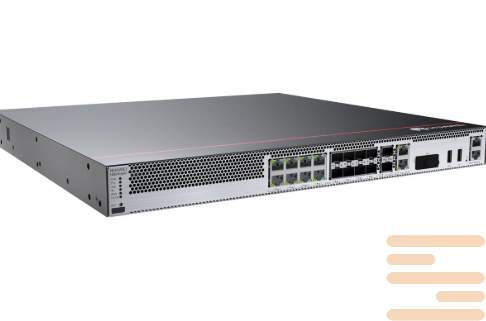

Firewall Huawei USG6585F-B
Network Firewall / Firewall & VPN Gateway 16 × GE RJ45; 8 × GE Combo; 2 × 10GE SFP+
Huawei USG6500 – This is a series of network screens designed to ensure a high degree of protection and security of corporate networks. These devices offer a wide range of features and capabilities that prevent safety threats, ensure data confidentiality and control network traffic.
Here are the main characteristics and features of network screens Huawei USG6500:
-
Multi -level protection: USG6500 Provides multi -level protection against various threats including harmful programs, attacks DDoS, internal threats and more.
-
Intellectual detection and prevention of attacks (IDP/IPS): Offers functions for detecting and preventing intelligent attacks using signature and anomalous traffic analysis.
-
VPN (Virtual Private Network): USG6500 Supports various protocols VPNs such as IPsec, SSL VPN and L2TP, providing a safe remote connection to the network.
-
Manage access and security policy: Allows you to set up flexible access rules and security policies to control traffic on the network including filtration URL-Address, Program Control and more.
-
Protection against harmful programs and viruses: Has built -in antiviral and anti -spam functions to detect and block malicious programs and unwanted mail.
-
Balancing load and fault resistance: Supports load balancing between multiple communication channels and provides fault tolerance using redundancy and routing mechanisms.
-
Convenient control and monitoring: Offers convenient network management and monitoring tools, including a web interface, console management, and centralized management via management protocols.
-
High performance and scalability: Network screens Huawei USG6500 have high productivity and scalability that allows you to process large volumes of traffic and meet the needs of different types of corporate networks.
These features make network screens Huawei USG6500 an excellent choice for enterprises that value the security and reliability of their network.
Technical characteristics of a network screen Huawei USG6585F-B:
| Specification | Details |
|---|---|
| Product Type | Network Firewall / Firewall & VPN Gateway |
| Series | HiSecEngine USG6000F |
| Model / Variant | USG6585F-B (HTM) AC Host |
| Fixed Interfaces / Ports | 16 × GE RJ45; 8 × GE Combo; 2 × 10GE SFP+ |
| Additional Ports | Console (RJ45); MGMT (10/100/1000M RJ45); USB 2.0 |
| Bypass Interfaces | GE RJ45 ports 0/0/0–0/0/1 form one bypass pair; ports 0/0/2–0/0/3 form another |
| Installation Type | Rack / Bench-top |
| Rack Height | 1 U |
| Dimensions without packaging (Typical, excluding protrusions) | 43.6 mm × 442 mm × 420 mm |
| Dimensions maximum depth (including handles etc.) | 43.6 mm × 442 mm × 453 mm |
| Dimensions with packaging | 175 mm × 550 mm × 650 mm |
| Weight without packaging | ~ 5.816 kg |
| Weight with packaging | ~ 8.786 kg |
| CPU | 1 × CPU, 8 cores, up to 2.2 GHz |
| Memory | 8 GB DDR4 with ECC |
| NOR Flash | 16 MB |
| NAND Flash | 2 GB |
| Storage Option | Optional, M.2 SSD, hot-swappable |
| Power Supply | AC power module (single), dual power modules optional for 1+1 redundancy |
| Rated Input Voltage | AC: 100-240 V, 50/60 Hz |
| Input Voltage Range | AC: 90-290 V, 45-65 Hz; high-voltage DC: 240 V DC available with appropriate module |
| Typical Power Consumption | ~ 45.19 W |
| Maximum Power Consumption | ~ 53.2 W |
| Typical Heat Dissipation | ~ 154.2 BTU/h |
| Maximum Heat Dissipation | ~ 181.5 BTU/h |
| Noise (normal operation) | ≤ 55 dB(A) |
| Operating Temperature | 0 °C to 45 °C |
| Storage Temperature | –40 °C to +70 °C |
| Operating Relative Humidity | 5% to 95%, non-condensing |
| Storage Relative Humidity | 5% to 95%, non-condensing |
| Operating Altitude | 0 to 5000 m |
| Storage Altitude | 0 to 5000 m |
| MTBF | ~ 33.48 years |
| MTTR | ~ 1 hour |
| Availability | 0.999997 |
| condition | new |
|---|
