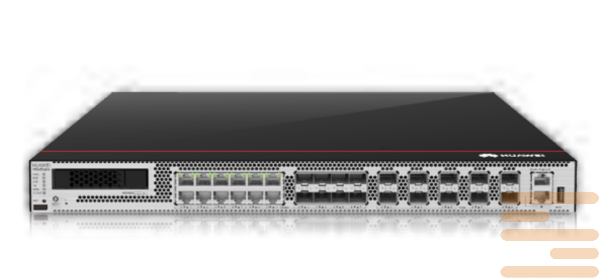

Firewall Huawei USG6636F
SKU
USG6636F
EAN:
21482
Condition:
new
Stock:
available on order
Lead time:
25-35 days
Network Firewall 8 × GE Combo, 2 × QSFP28, 2 × QSFP+, 4 × SFP28, 10 × SFP+
Category: Huawei Firewall
Ultra -time highly effective internet screens with artificial intelligence (II) series HiSecEngine USG6600F companies Huawei designed and used for processing and storage centers of the next generation on the border side of the network.
There are online intermediary screens Huawei HiSecEngine USG6600F On the platform base of new software and hardware functions and options. The ruler provides a double stack of Internet protocol version 4 (IPv4)/IPv6, which significantly increases service performance, and intelligent technologies further help effectively defend against any modern high-level hacker threats.
Specifications Huawei USG6636F:
There are online intermediary screens Huawei HiSecEngine USG6600F On the platform base of new software and hardware functions and options. The ruler provides a double stack of Internet protocol version 4 (IPv4)/IPv6, which significantly increases service performance, and intelligent technologies further help effectively defend against any modern high-level hacker threats.
Specifications Huawei USG6636F:
| Specification | Details |
|---|---|
| Product Type | Network Firewall |
| Installation Type | Rack-mount |
| Rack Height | 1U |
| Dimensions (without packaging) | 43.6 mm × 442 mm × 420 mm (H × W × D) |
| Dimensions (max, incl. protruding parts) | 43.6 mm × 442 mm × 470 mm |
| Dimensions (with packaging) | 185 mm × 550 mm × 650 mm |
| Weight (AC, without packaging) | 8.035 kg |
| Weight (AC, with packaging) | 11.005 kg |
| Weight (DC, without packaging) | 6.703 kg |
| Weight (DC, with packaging) | 9.673 kg |
| CPU | 1 × 16-core CPU, up to 2.0 GHz |
| Memory | 32 GB DDR4 with ECC |
| NOR Flash | 64 MB |
| NAND Flash | 4 GB |
| Hard Disk | Optional, 2.5-inch SATA, hot swappable |
| Fixed Interfaces | 8 × GE Combo, 2 × QSFP28, 2 × QSFP+, 4 × SFP28, 10 × SFP+ |
| Power Supply | Dual modules (1+1 redundancy), AC or DC |
| Rated Input Voltage | AC: 100–240 V, 50/60 Hz; DC: 240 V |
| Input Voltage Range | AC: 90–290 V, 45–65 Hz; DC: 190–290 V |
| Max Input Current | Up to 8 A (per module, AC) |
| Typical Power Consumption | 137.6 W (AC), 129.2 W (DC) |
| Max Power Consumption | 183 W (AC), 178 W (DC) |
| Typical Heat Dissipation | 469.5 BTU/h (AC), 440.8 BTU/h (DC) |
| Max Heat Dissipation | 624.4 BTU/h (AC), 607.4 BTU/h (DC) |
| Cooling | 4 fan modules (3+1 redundancy), front-to-back airflow |
| Noise Level | ≤ 72 dB(A) |
| MTBF | 37.04 years |
| MTTR | 1.62 hours |
| Availability | 0.999997 (AC), 0.999998 (DC) |
| Redundant Fans | 3+1 |
| condition | new |
|---|
