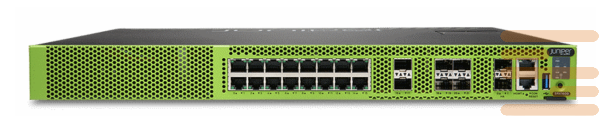

Firewall Juniper SRX1600-DC

Specifications

SRX1600

Connectivity

Onboard ports

16 x 1 GbE 10/100/1000 BASE-T

Onboard small form-factor pluggable plus (SFP+) transceiver ports

4 x 1 GbE/10 GbE SFP+

2 x 1 GbE/10 GbE/25 GbE SFP28

Out-of-Band (OOB) management ports

1 x 1 GbE G (RJ-45)

Dedicated high availability (HA) ports

2 x 1 GbE SFP

Console

1 (RJ-45)

USB 3.0 ports (Type A)

1

Storage

Storage (SSD)

1 x 120 GB (system/logging)

Dimensions and Power

Form factor

1U

Size (W x H x D)

17.28 x 1.74 x 18.20 in

(43.89 x 4.42 x 46.23 cm)

Weight (device and PSU)

Chassis with two AC power supplies: 15.7 lb (7.1 kg)

Chassis with two DC power supplies: 15.9 lb (7.2 kg)

Chassis with package for shipping: 32.8 lb (14.9 kg)

Redundant PSU

1+1

Power supply

2 x 450 W AC PSU redundant

2 x 650 W DC PSU redundant

Average heat dissipation

1 x DC PSU (40V): 487.9 BTU/h

2 x DC PSU (40V): 498 BTU/h

1 x AC PSU (110V): 467.5 BTU/h

1 x AC PSU (230V): 445.3 BTU/h

2 x AC PSU (110V): 510 BTU/h

2 x AC PSU (230V): 501.6 BTU/h

Maximum current consumption

2 A (for 110 V AC PSM)

1 A (for 230 V AC PSM)

4.7 A (for -40 V DC PSM)

Maximum inrush current

50 A for 1 cycle of AC (AC PSM)

40 A-pk (DC PSM)

Environment and Regulatory Compliance

Acoustic noise level

58 dB (max)

Airflow/cooling

Front to back

Operating temperature

32° to 104° F (0° to 40° C at 6000 ft altitude)

Operating humidity

5% to 90% non-condensing

Meantime between failures (MTBF)

Over 100,000 hours (12 years)

FCC classification

Class A

RoHS compliance

RoHS 6

Performance and Scale

Firewall (IMIX packet size) throughput Gbps3

9 Gbps

Firewall (1518B packet size) throughput Gbps3

24 Gbps

IPsec VPN (IMIX packet size) throughput Gbps3

5.5 Gbps

IPsec VPN (1400B packet size) throughput Gbps3

18 Gbps

Application security performance in Gbps (TPS#/CPS**)

21.5 Gbps/5.3 Gbps

IPS recommended in Gbps (TPS#/CPS**)

21 Gbps/2.75 Gbps

Next-generation firewall in Gbps (TPS#/CPS**)4

21 Gbps/2.75 Gbps

Secure Web Access Firewall in Gbps (TPS**)

2.5 Gbps

Advanced Threat in Gbps (CPS6

1.3 Gbps

Connections per second (64B)

95,000

Maximum security policies

16,000

Maximum concurrent sessions (IPv4 or IPv6)

2 Million

Route table size (RIB/FIB) (IPv4)

2 Million/1 Million

IPsec VPN tunnels

2,000

Number of remote access/SSL VPN (concurrent) users

2,000

Max VLANs

4,096

GRE Tunnels

2,000

Maximum Security Zones

512

Maximum Virtual Routers

512

NAT Rules

8,000
