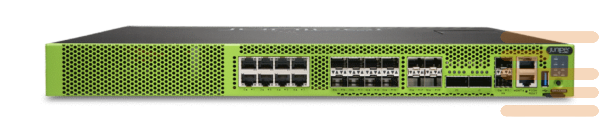

Firewall Juniper SRX2300-DC-TAA

SKU
SRX2300-DC-TAA
Call for Price
EAN: 18646
Stock: available on order
Lead time: 10-14 days
GPL price:

53899 $

SRX2300-DC HW & JUNOS BASE (JSB)) - TAA

The history of the evolution of data centers and distributed architectures in the modern world — this is an exciting journey into the field of security and efficiency. Instead of being limited to the traditional role of perimeter defense, firewalls have become an integral part of network security, permeating the entire network fabric.

One of the advanced systems that embodies this evolution is the distributed services Juniper Connected Security. Managed by cloud Juniper Security Director This architecture offers an impressively efficient, scalable and easily managed firewall solution to protect today's distributed data centers.

Firewall line Juniper Networks SRX2300 becomes a key element of this innovative architecture. This 1U firewall does more than just provide network security, but becomes a next-generation energy-efficient beacon. With built-in Zero Trust, it reimagines network security using fabric integration Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN) and AI threat prediction system.

One of the key advantages SRX2300 is its ability to handle the bandwidth of a new generation firewall at the level 39 Gbit/with per rack unit, making it efficient and high-performance. With support for interfaces at the speed of 100 Gbit/with and support MACsec, This firewall is ready to meet the challenges of today's distributed networks.

Product description Juniper Networks® SRX2300 reveals the advanced capabilities of this highly effective new generation firewall. It is designed to provide reliable network protection in the enterprise campus and data center. In addition, it supports roaming scenarios, SD-WAN for large departments and SD-WAN for secure hubs, making it a universal solution for modern business.

This platform is coMbimplements carrier-level routing with advanced switching, providing reliable protection, effective threat detection and extensive automation capabilities. Also, it implements the concept of network protection through "zero trust", setting new standards in data security and ensuring a high level of efficiency in data centers.

All of this is built into SRX2300, which proves to be not just a security device, but also a strategic partner for organizations looking to improve their network structures. With this firewall, security and performance become interdependent components of a successful business infrastructure in the era of distributed data centers.

Technical specifications of the firewall Juniper SRX2300-DC-TAA:


Specifications

SRX2300

Connectivity

Onboard ports

8 x 1 GbE/2.5 GbE/5 GbE/10 GbE BASE-T

Onboard small form-factor pluggable plus (SFP+) transceiver ports

8 x 1 GbE/10 GbE SFP+

2 x 1 GbE/10 GbE/25 GbE SFP28

2 x 40 GbE/100 GbE QSFP28

Out-of-Band (OOB) management ports

1 x 1 GbE (RJ-45)

Dedicated high availability (HA) ports

2 x 1 GbE SFP

Console

1 (RJ-45)

USB 3.0 ports (Type A)

1

Storage

Storage (SSD)

1 x 120 GB (system disk), 1 x 200 GB (logging disk)

Dimensions and Power

Form factor

1U

Size (W x H x D)

17.28 x 1.74 x 18.20 in

(43.89 x 4.42 x 46.23 cm)

Weight (device and PSU)

Chassis with two AC power supplies: 19 lb (8.6 kg)

Chassis with two DC power supplies: 19.3 lb (8.8 kg)

Chassis with package for shipping: 35.6 lb (16.2 kg)

Redundant PSU

1+1

Power supply

2 x 450 W AC PSU redundant

2 x 650 W DC PSU redundant

Average heat dissipation

1 x DC PSU (40V): 653.4 BTU/h

2 x DC PSU (40V): 737 BTU/h

1 x AC PSU (110V): 682 BTU/h

1 x AC PSU (230V): 662 BTU/h

2 x AC PSU (110V): 703 BTU/h

2 x AC PSU (230V): 682 BTU/h

Environment and Regulatory Compliance

Airflow/cooling

Front to back

Operating temperature

32° to 104° F (0° to 40° C at 6000 ft altitude)

Operating humidity

5% to 90% non-condensing

Meantime between failures (MTBF)

Over 100,000 hours (12 years)

FCC classification

Class A

RoHS compliance

RoHS 6

Performance and Scale

Firewall (IMIX packet size) throughput Gbps3

26 Gbps

Firewall (1518B packet size) throughput Gbps3

39 Gbps

IPsec VPN (IMIX packet size) throughput Gbps3

15 Gbps

IPsec VPN (1400B packet size) throughput Gbps

36 Gbps

Application security performance in Gbps (TPS#/CPS)

36 Gbps/19 Gbps

Recommended IPS in Gbps (TPS#/CPS)

35 Gbps/10 Gbps

Next-generation firewall in Gbps (TPS#/CPS)4

35 Gbps/10 Gbps

Secure Web Access Firewall in Gbps (TPS**)

9.5 Gbps

Advanced Threat in Gbps (CPS)6

4.5 Gbps

Connections per second (64B)

320,000

Maximum security policies

30,000

Maximum concurrent sessions (IPv4 or IPv6)

5 Million

Route table size (RIB/FIB) (IPv4)

2 Million/1.2 Million

IPSec VPN tunnels

4,000

Number of remote access/SSL VPN (concurrent) users

5,000

Max VLANs

4,096

GRE Tunnels

4,000

Maximum Security Zones

1,000

Maximum Virtual Routers

1,000

NAT Rules

10,000
