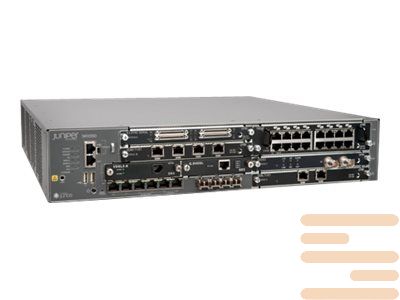

Firewall Juniper SRX550-M-SYS-JE-DC

SKU

SRX550-M-SYS-JE-DC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€8,370.00

EAN: 11329

Stock: available on order

Lead time: 10-14 days

GPL price:

13500 $

SRX550-DC-M HW & JUNOS ENHANCED (JSE)

Category: Juniper Firewall

Details

Firewall SeriesВ (firewall, firewall)В Juniper SRX500В are a solution that includes security, routing, switching and WAN connectivity in a single form factor deviceВ 2RU. It is a robust, flexible, modular platform designed to protect medium to large enterprise networks..

The series is represented by the modelВ SRX550. This platform hasВ 6 copper gigabitВ andВ 4 sfp gigabitВ built-in ports on board, andВ 2 Mini PIMВ slots +В 6 GPIMВ orВ XPIMВ expansion slot.В Platform SRX550В has firewall performanceВ before 5,5 Gbit/c,В IPSec VPNВ with speedВ 1,5 Gbit/withВ andВ IPSВ with speedВ 900 Mbit/c. Like the whole lineВ Juniper SRX, Series ModelsВ SRX500В work under the controlВ OS Junos.В firewall SRX550В supports additional security features, including unified threat protection (UTM), including intrusion prevention system (IPS), Filters for protection against viruses and spam and web filtering.

Specifications of the firewall Juniper SRX550-M-SYS-JE-AC:В

Product Specifications

General
Device Type	Security appliance
Height (Rack Units)	2U
Width	17.5 in
Depth	18.2 in
Height	3.5 in
Weight	21.96 lbs

Processor / Memory / Storage
RAM	4 GB
Flash Memory	8 GB

Networking
Form Factor	Rack-mountable
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, HDLC, Frame Relay, RS-232, PPP, X.21, V.35, RS-449, MLPPP, FRF.15, FRF.16, FRF.12, MLFR
Switching Protocol	Frame Relay, Ethernet
Network / Transport Protocol	RSVP, IPSec, PPPoE, PPPoA, DHCP
Routing Protocol	OSPF, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, DVMRP, VRRP, PIM-SM, static IP routing, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM, MSDP, ECMP, RIPng, MLD, MPLS
Performance	Firewall throughput (large packets): 7 Gbps Firewall throughput (IMIX): 2 Gbps Firewall throughput (64-byte packet size): 700000 packets per second Firewall throughput (HTTP): 2 Gbps VPN throughput (IPSec): 1 Gbps IPS throughput: 800 Mbps Antivirus throughput: 300 Mbps Connection rate: 27000 connections per second Routing throughput: 1000000 packets per second
Capacity	IPSec VPN tunnels: 2000 Concurrent sessions: 375000 Security policies: 8000 BGP instances: 56 BGP peers: 192 BGP routes: 712000 RIP instances: 56 RIP routes: 712000 Static routes: 100000 Concurrent VPN tunnels: 2000 VPN tunnel interfaces: 456 Maximum number of remote users: 500 Maximum number of users: unlimited Security zones: 96 Virtual routers: 128 Virtual interfaces (VLANs): 3967 MLPPP maximum physical interfaces: 12 MLFR maximum physical interfaces: 12 OSPF instances: 56 OSPF routes: 200000 RIP routes: 32000
Features	Modular design, firewall protection, NAT support, VPN support, PAT support, IGMP snooping, Syslog support, DoS attack prevention, content filtering, DiffServ support, IPv6 support, DDos attack prevention, Weighted Random Early Detection (WRED), Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), Link Fragmentation and Interleaving (LFI), DHCP server, IPv4 support, LLDP support, DHCP relay, 3G/4G USB Dongle Support, J-Flow, tagged VLAN, DiffServ Code Point (DSCP) support
Encryption Algorithm	DES, Triple DES, RSA, MD5, IKE, DH, SHA-1, PKI, 128-bit AES, 256-bit AES, IKEv2, 256-bit SHA-2, 256-bit SHA
Authentication Method	SecurID, RADIUS, X.509 certificates, LDAP, XAUTH (RADIUS, LDAP, Active Directory)
Compliant Standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1ad

Expansion / Connectivity
Expansion Slots	8 (total) / 8 (free) x expansion slot
Interfaces	6 x 1000Base-T - RJ-45 4 x 1000Base-X - SFP (mini-GBIC) 2 x USB - Type A

Miscellaneous
Included Accessories	Rack mount kit
MTBF	9.6 years
Compliant Standards	FCC Class A certified, ICSA IPSec certified, ICSA Firewall certified, CISPR 22 Class A, EN55022 Class A, CB, AS/NZS 60950-1, DOC, CS-03, UL 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, ICES Class A, VCCI Class A, JITC, EN 300386

Power
Power Device	Internal power supply - hot-plug
Installed Qty	1
Max Supported Qty	2
Power Redundancy	Optional
Voltage Required	AC 120/230 V (50/60 Hz)
Power Consumption Operational	85 Watt
Power Provided	645 Watt

Software / System Requirements
OS Provided	JUNOS
Software Included	Junos Software Enhanced

Environmental Parameters
Min Operating Temperature	32 В°F
Max Operating Temperature	104 В°F
Humidity Range Operating	10 - 90% (non-condensing)
