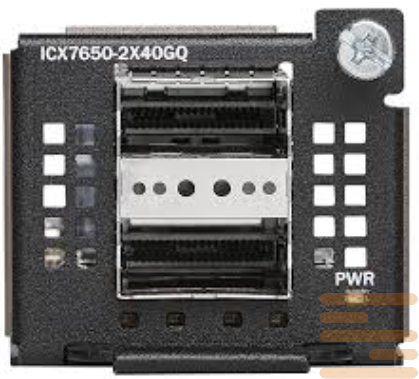

Module Ruckus ICX7650-2X40GQ
ICX 7650/7550 2-port 40GbE QSFP+ Module
Network modules RUCKUS® ICX 7550 are highly productive components to build scaled and reliable network infrastructures. They are ideal for use in modern campus networks, providing support for Wi-Fi 6 and future generations of wireless technologies.
Models ICX 7550 offer a variety of ports, including 1/2.5/5/10 GbIT/with Ethernet, 1/10 GbIT/with SFP/SFP+ and 40/100 GbIT/with QSFP28. This allows flexibly set up network connections depending on the needs of a particular installation. For example, models ICX 7550-24ZP and ICX 7550-48ZP equipped with 24 and 48 Ethernet ports respectively, maintaining speeds up to 10 GbIT/s, and also have two ports 40/100 GbIT/with QSFP28 for high -speed joints.
One of the key features of these modules is the support of technology Power over Ethernet (PoE). Models ICX 7550-24ZP and ICX 7550-48ZP provide power to 90 W> to a port allowing devices such as Wi-Fi access points, IP cameras and other devices directly via Ethernet Cabel. This simplifies installation and reduces the need for additional power sources.
In terms of scalability ICX 7550 Supports the ability to combine up to 12 devices into a stack, providing a total bandwidth of up to 960 GbIT/with. This allows you to create flexible and scaled networks that can grow along with business needs.
To manage network infrastructure ICX 7550 offers integration with solutions RUCKUS SmartZone, RUCKUS Cloud and RUCKUS Unleashed. This provides centralized management, monitoring and analysis of the network that simplifies operation and increases the network efficiency.
Network modules RUCKUS ICX 7550 – These are reliable and highly productive solutions to build modern network infrastructures that meet the requirements of both professionals and users who do not have deep technical knowledge.
Technical characteristics of a network module Ruckus ICX7650-2X40GQ:
| Field | Specification |
|---|---|
| Model Name | ICX7650-2X40GQ |
| Product Type | Expansion Module |
| Number of Ports | 2 × QSFP+ |
| Supported Speeds | Up to 40 Gbps per port |
| Maximum Data Rate | 80 Gbps |
| Connection Type | Fiber |
| Purpose | Aggregation and uplink connections |
| Compatibility | Compatible with all Ruckus ICX7650 Series switches |
| Power Consumption (Typical) | 5.64 W |
| Power Consumption (Maximum) | 7.38 W |
| Operating Temperature | 0°C to 45°C |
| Dimensions | 4.5 cm × 22.5 cm × 2.5 cm |
| Weight | 0.3 kg |
| Regulatory Compliance | ROHS Compliant |
| Warranty | Limited Product Warranty |
| condition | new |
|---|
