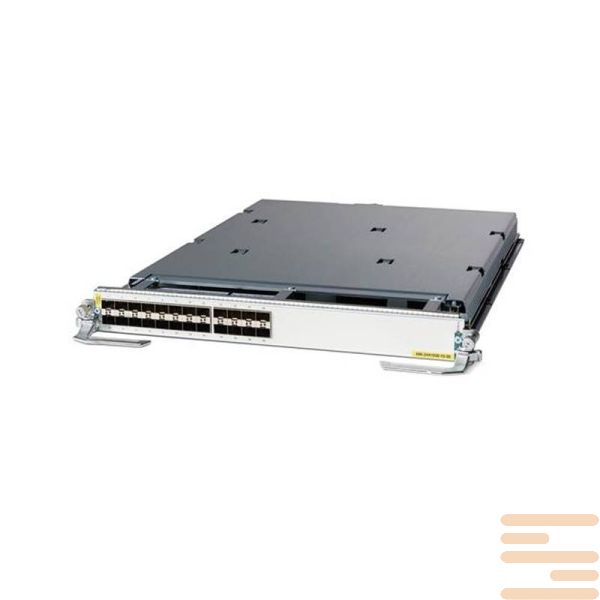

Module Cisco A99-48X10GE-1G-TR

SKU

A99-48X10GE-1G-TR

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Call for Price

EAN: 17298

Stock: available on order

Lead time: 10-14 days

GPL price:

337859 $

ASR 9900 48-port 10GE 1GE dual rate -TR LC

Category: Line Cards

Details

Interface or line modules Cisco (line card, interface module) allow you to expand the router or modular platform with the required functionality, including the necessary access ports at speeds 1GbE, 10GbE, 40GbE or 100GbE. Mainly for each series of modular routers or chassis Cisco releases various expansion modules for a certain line of devices, but in most cases, the module can be used in more than one line (for example. interface module Cisco EHWIC-4ESG compatible with routers Cisco ISR G2 1900 series, 2900 series and 3900 series).

Depending on the platform, interface module Cisco can support a small number of ports, as is the case with small routers Cisco 1900 series and 48 ports in one module for 7600 series chassis. Interface modules and boards Cisco support many different interfaces and can be used both on the network Ethernet, as well as in other data networks.

Interface Module Specifications Cisco A99-48X10GE-1G-TR:

General
Device Type	Expansion module
Form Factor	Plug-in module

Networking
Ports	10 Gigabit SFP+ / SFP (mini-GBIC) x 48
Connectivity Technology	Wired
Data Link Protocol	10 Gigabit Ethernet
Features	Flow control, full duplex capability, MPLS support, Quality of Service (QoS), NetFlow, Virtual Circuit Connectivity Verification (VCCV)
Compliant Standards	IEEE 802.3x, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3ba, ITU-T Y.1731

Expansion / Connectivity
Interfaces	48 x 10GBase-X – SFP/SFP+

Miscellaneous

Compliant Standards

FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, ACA TS001, EMC, ICES-003 Class A, EN 60825, FDA, AS/NZS 3548 Class A, BSMI Class A, AS/NZS 60950, IEC 60825, VCCI Class A, ETSI 300 019, IEC/UL/CSA/EN 60950-1, EN 300 386, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11, IEC/EN 61000-4-2

Software / System Requirements
OS Required	Cisco IOS XR 6.2.1

Dimensions & Weight
Width	1.6 in
Depth	22 in
Height	14.5 in
Weight	28 lbs

Manufacturer Warranty
Service & Support	Limited warranty – 1 year

Environmental Parameters
Min Operating Temperature	41 °F
Max Operating Temperature	104 °F
Humidity Range Operating	10 – 85%
