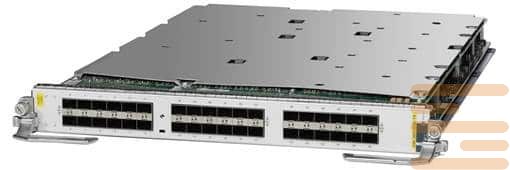

Module Cisco A9K-36X10GE-TR
450000 $
Interface or line modules Cisco (line card, interface module) allow you to expand the router or modular platform with the required functionality, including the necessary access ports at speeds 1GbE, 10GbE, 40GbE or 100GbE. Mainly for each series of modular routers or chassis Cisco releases various expansion modules for a certain line of devices, but in most cases, the module can be used in more than one line (for example. interface module Cisco EHWIC-4ESG compatible with routers Cisco ISR G2 1900 series, 2900 series and 3900 series).
Depending on the platform, interface module Cisco can support a small number of ports, as is the case with small routers Cisco 1900 series and 48 ports in one module for 7600 series chassis. Interface modules and boards Cisco support many different interfaces and can be used both on the network Ethernet, as well as in other data networks.
Interface Module Specifications Cisco A9K-36X10GE-TR:
|
Feature |
Benefit |
|
Interface Support |
|
|
Enhanced Small Form-Factor Pluggable (SFP+) interfaces |
Provide the capability to mix and match10-Gigabit Ethernet interface types across a single line card. For a complete list of supported interfaces, please see the Cisco ASR 9000 Transceiver Modules: Line Card Support data sheet. |
|
G.709 and Advanced FEC |
Standard G.709 providing transmission-layer operations, administration, and maintenance (OA&M); G.709 Standard FEC and Advanced FEC for enhanced transmission system performance |
|
Scalable and Integrated Multiservice Support |
|
|
Layer 2 and Layer 3 services |
Combined IP, MPLS, Ethernet, Layer 2 VPN (L2VPN), and Layer 3 VPN (L3VPN) services |
|
Evolutionary Monitoring |
|
|
Carrier-class OA&M |
NetFlow, IEEE 802.1ag, IEEE 802.3ah, ITU Y.1731, IP service-level agreement (IP SLA), virtual circuit connectivity verification (VCCV), ping, and traceroute |
|
Video monitoring (VidMon) |
Provides real-time monitoring of video flows, including issuance of an alarm upon degradation |
|
Carrier-Grade OS |
|
|
Cisco IOS® XR Software |
Modular, patchable, restartable, scalable, highly available, carrier-core and edge-proven operating system |
|
T-Class Synchronization |
|
|
Synchronous Ethernet |
Derives and provides synchronization from and to Ethernet interfaces, Cisco ASR 9000 Series RSPs, and network synchronization interfaces |
|
IEEE 1588-2008 |
Cisco ASR 9000 support of the IEEE 1588-2008 protocol, providing the capability to distribute precision time and frequency across the network |
| condition | new |
|---|
