A9K-MOD80-TR Specifications
|
|
Type
|

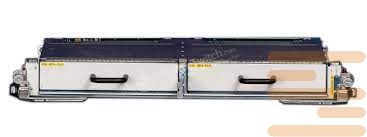

ASR 9000 Mod80 Modular Line Card, Packet Transport Optimized, requires modular port adapters
|
|
Physical Dimensions
|
14.5 W x 1.72 H x 22.40 L
14.5 W x 1.72 H x 24.25 L (including ejector levers)
|
|
Weight
|
17.5 lbs. (est.) (7.93 Kg)
|
|
Chassis compatibility
|
Compatible with the Cisco ASR 9922, 9010, 9006 and 9001 systems
|
|
Port density
|
Up to 2 modular port adapters are supported per line card.
|
|
Ethernet
|
· IEEE 802.3 compliant
· 10 Gigabit Ethernet PHY monitoring
· IEEE 802.x flow control
· Full-duplex operation
· Per-port byte and packet counters for policy drops; oversubscription drops; cyclic redundancy check (CRC) error drops; packet sizes; and unicast, multicast, and broadcast packets
|
|
Card density
|
Maximum number of line cards per system: Cisco ASR 9922 = 20, Cisco ASR 9010 = 8, and Cisco ASR 9006 = 4
|
|
Options
|
Each line card is available as either a Service Edge Optimized (enhanced QoS) or Packet Transport
Optimized (basic QoS) line card.
|
|
Reliability and availability
|
Line card online insertion and removal (OIR) support without system impact
|
|
Network Equipment Building Standards (NEBS)
|
Cisco ASR 9000 Series Routers are designed to meet:
· SR-3580: NEBS Criteria Levels (Level 3)
· GR-1089-CORE: NEBS EMC and Safety
· GR-63-CORE: NEBS Physical Protection
|
|
Operating temperature (nominal)
|
41 to 104ºF (5 to 40ºC)
|
|
Operating temperature (short-term)
|
23 to 131ºF (–5 to 55ºC)
|
|
Operating humidity (nominal) relative humidity
|
10 to 85%
|
|
Storage temperature
|
–40 to 158ºF (–40 to 70ºC)
|
|
Storage relative humidity
|
5 to 95%
Note: Not to exceed 0.024 kg of water per kg of dry air
|
|
Operating altitude
|
–60 to 4000m (up to 2000m conforms to IEC, EN, UL, and CSA 60950 requirements)
|
|
ETSI standards
|
Cisco ASR 9000 Series Routers are designed to meet:
· EN300 386: Telecommunications Network Equipment (EMC)
· ETSI 300 019 Storage Class 1.1
· ETSI 300 019 Transportation Class 2.3
· ETSI 300 019 Stationary Use Class 3.1
· EN55022: Information Technology Equipment (Emissions)
· EN55024: Information Technology Equipment (Immunity)
· EN50082-1/EN-61000-6-1: Generic Immunity Standard
|
|
EMC standards
|
Cisco ASR 9000 Series Routers are designed to meet:
· FCC Class A
· ICES 003 Class A
· AS/NZS 3548 Class A
· CISPR 22 (EN55022) Class A
· VCCI Class A
· BSMI Class A
· IEC/EN 61000-3-2: Power Line Harmonics
· IEC/EN 61000-3-3: Voltage Fluctuations and Flicker
|
|
Immunity
|
Cisco ASR 9000 Series Routers are designed to meet:
· IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)
· IEC/EN-61000-4-3: Radiated Immunity (10V/m)
· IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)
· IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)
· IEC/EN-61000-4-5: Signal Ports (1kV)
· IEC/EN-61000-4-5: Surge DC Port (1kV)
· IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)
· IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)
· IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations
|
|
Safety
|
Cisco ASR 9000 Series Routers are designed to meet:
· UL/CSA/IEC/EN 60950-1
· IEC/EN 60825 Laser Safety
· ACA TS001
· AS/NZS 60950
· FDA: Code of Federal Regulations Laser Safety
|
