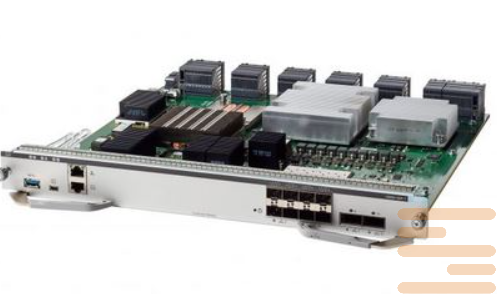

Module Cisco C9610-SUP-3
4 × Cisco Silicon One E100 forwarding ASICs + Q200L fabric ASIC
Processor modules Cisco (Managing modules) – Routing Engine, Supervisor Cisco – are widely used in routers or modular switches from Cisco, To increase the productivity and general management of the system as a whole. Processor modules Cisco made under certain series of network routers or switches and chassis. Also, such modules can be combined with different platforms at a time, eg Catalyst 6500 Series and Cisco 7600 routers.
Depending on the platform, control modules Cisco can support different services and services such as quality service (QoS), network management, safety features, dynamic and static routing, switching at different levels of module OSI and much more. Most control modules Cisco (Supervisor Engine) have built -in ports SFP+, QSFP+ and others.
Many platforms support the installation of a reserve processor module Cisco To increase the failure resistance of the entire routing system.
Technical characteristics of the control module Cisco C9610-SUP-3:
| Specification | Cisco C9610-SUP-3 |
|---|---|
| ASIC Architecture | 4 × Cisco Silicon One E100 forwarding ASICs + Q200L fabric ASIC (cisco.com) |
| Throughput per E100 ASIC | 12.8 Tbps (6.4 Tbps full‑duplex) with up to 3.9 Bpps |
| Fabric ASIC Throughput | Q200L fabric ASIC: 25.6 Tbps (12.8 Tbps full‑duplex) with up to 8 Bpps |
| Shared-Memory Buffer per ASIC | 64 MB low-latency SMS buffer per E100 ASIC |
| CPU & Memory | Intel x86 CPU @ 2.0 GHz, 8 cores; 32 GB DDR4 RAM |
| Local Storage | Up to 960 GB SATA SSD (container-based app hosting) |
| Management Interfaces | 2 × 10 GbE SFP+ management ports |
| Table Scale | MAC: up to 128K entriesIP routes: up to 1M entries |
| IPv6 Forwarding | Wire-rate hardware forwarding for IPv6 |
| High Availability Support | Stateful switchover (SSO), In-Service Software Upgrade (ISSU), Graceful Restart, etc. |
| Supported Port Speeds | 10G–50G (SFP), 40G–400G (QSFP-DD) support via line cards |
| Intended Use Cases | Campus distribution/core, high-scale VXLAN (LISP/EVPN border/spine) |
| condition | new |
|---|
