Interface or line modules CiscoВ (line card, interface module) allow you to expand the router or modular platform with the required functionality, including the necessary access ports at speedsВ 1GbE,В 10GbE,В 40GbEВ orВ 100GbE. Mainly for each series of modular routers or chassisВ CiscoВ releases various expansion modules for a certain line of devices, but in most cases, the module can be used in more than one line (for example. interface module Cisco EHWIC-4ESG compatible with routers Cisco ISR G2 1900 series, 2900 series and 3900 series).В
depending on the platform,В interface module CiscoВ can support a small number of ports, as is the case with small routers Cisco 1900 series and 48 ports in one module for 7600 series chassis.В Interface modules and boards CiscoВ support many different interfaces and can be used both on the networkВ Ethernet, as well as in other data networks.

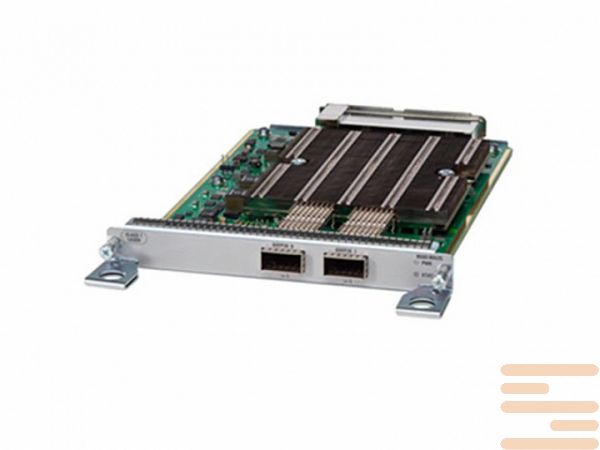

Technical characteristics of the interface module Cisco N560-IMA-2C:
|
Parameter
|
Meaning
|
|
form factor
|
7RU
|
|
Power Supply Slots
|
3
|
|
Slots for interface modules
|
16
|
|
Slots for Route Switch Processors
|
2x slots RSP
|
|
fan tray
|
1x Fan compartment with fan reservation
4x Input alarm of dry contacts on the fan pallet
|
|
Power supplies
|
Up to 3 power supplies (AC or DC)
Modules operate in load sharing mode
The system can operate from a single power supply and supports mixing of AC and DC sources in the same chassis.
|
|
Operating conditions
|
from -40В°C before 65В°C
|
|
Dimensions, mm
|
310,38 x 443 x 234,2
|
