Interface or line modules CiscoВ (line card, interface module) allow you to expand the router or modular platform with the required functionality, including the necessary access ports at speedsВ 1GbE,В 10GbE,В 40GbEВ orВ 100GbE. Mainly for each series of modular routers or chassisВ CiscoВ releases various expansion modules for a certain line of devices, but in most cases, the module can be used in more than one line (for example. interface module Cisco EHWIC-4ESG compatible with routers Cisco ISR G2 1900 series, 2900 series and 3900 series).В
depending on the platform,В interface module CiscoВ can support a small number of ports, as is the case with small routers Cisco 1900 series and 48 ports in one module for 7600 series chassis.В Interface modules and boards CiscoВ support many different interfaces and can be used both on the networkВ Ethernet, as well as in other data networks.

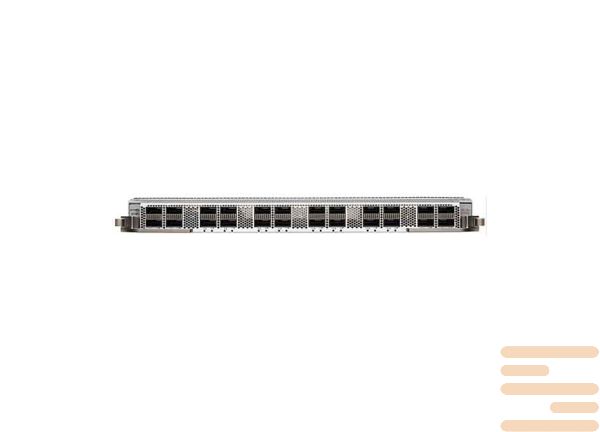

Technical characteristics of the interface module Cisco NC57-18D12TH-SB:
|
Produit
|
Cisco NC57-18D12TH-SB & Right to Use License.
|
|
Caracteristiques
|
– Unicast IPv4 et IPv6
– Interfaces de couche 3: physiques et sous-interfaces
– Protocoles de routage: statique, Open Shortest Path First (OSPFv2), OSPFv3, Intermediate System to Intermediate System (ISIS), ISISv6 et Border Gateway Protocol (BGP)
– Multipath a cout egal 64 voies (ECMP)
– Entree et sortie IPv4 ACL et IPv6 ACL de couche 3
– Detection de retransmission bidirectionnelle (BFD)
– Technologie Cisco bundle Ethernet (jusqu’a 64 ports par bundle Ethernet)
– Protocole LACP (Link Aggregation Control Protocol): IEEE 802.3ad
– Prise en charge de trames Jumbo (jusqu’a 9216 octets)
– Protocole de redondance de routeur virtuel (VRRP)
– Reseau prive virtuel de couche 3 (L3VPN)
MPLS
– Changement d’etiquette
– LDP
– Ingenierie du trafic MPLS
– Ethernet sur MPLS (EoMPLS)
– Transport base sur le routage des segments
– Extensions ISIS pour segmenter le routage
– Extensions OSPF pour segmenter le routage
– Ingenierie de peering de sortie BGP
– Ingenierie du trafic de routage de segments (SR-TE)
– Alternatives de boucle independante de la topologie de routage de segment (TI-LFA
|
|
Capacite
|
– Debit de commutation : 7.2 Tbit/s
– Echelle de route: FIB jusqu’a 2,5 M IPv4 ou 1 M IPv6
– Memoire adressable de contenu ternaire sur puce (TCAM) pour les listes de controle d’acces au reseau (ACL) et la qualite de service (QoS)
– Prend en charge SyncE et IEEE1588 PTP en combinaison avec le processeur de routage NC55-RP-E
|
|
Protocole de routage
|
IS-IS, BGP, HSRP, OSPFv2, static IP routing, OSPFv3, ECMP, IS-ISv6, MPLS, Bidirectional Forwarding Detection (BFD)
|
|
Ports
|
– 8 x 400 Gb Ethernet – QSFP28 / QSFP+ / QSFP-DD
Or
– 30 x 200 Gb /100 Gb
|
|
OS
|
Cisco IOS XR Software 7.0.2 Release software image
|
|
Montable en rack
|
В 1U
|
