Interface or line modules Aruba HPE enable specialists to control the status and loading of all infrastructure components without exception (access points, controllers, switches) and choose the configuration of existing as well as put into operation new hardware devices.
The AirWave option allows you to receive information about network-integrated users, collect statistics about their actions and traffic.
Features of interface modules Aruba HPE:
- turning an array of switches into one large virtual device, where each node of the stack has a common IP address (stacking);
- backup cooling, which is installed in hot-swappable mode and is activated in case of failure of the main (used) fans;
- connecting more network devices through interfaces not available on the switch by default (For example, SFP+ or CX4).
Interface or line modules Aruba HPE (line card, interface module) make it possible to expand the router or modular platform with the required functionality, including the necessary access ports at different speeds. Control or Processor modules (Routing Engine, Supervisor) Aruba HPE used in routers or modular switches to control the entire system and increase its performance.

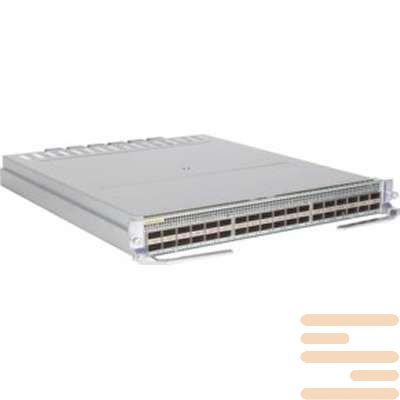

Specifications of the interface module HPE FlexFabric JH425A:
|
Designed For
|
HPE FlexFabric 12902E Switch Chassis, 12904E Switch Chassis, 12908E Switch Chassis, 12916E Switch Chassis
|
Networking
|
Ports
|
100 Gigabit QSFP28 x 18 + 40 Gigabit QSFP+ x 18
|
|
Connectivity Technology
|
Wired
|
|
Data Link Protocol
|
40 Gigabit Ethernet, 100 Gigabit Ethernet
|
|
Data Transfer Rate
|
100 Gbps
|
Dimensions & Weight
|
Width
|
17.1 in
|
|
Depth
|
20.2 in
|
|
Height
|
2 in
|
|
Weight
|
22.05 lbs
|
General
|
Device Type
|
Expansion module
|
|
Form Factor
|
Plug-in module
|
Expansion / Connectivity
|
Interfaces
|
18 x 100Gb Ethernet - QSFP28 ¦ 18 x 40Gb Ethernet - QSFP+
|
