Module Juniper MPC4E-3D-32XGE-IR-B

SKU
MPC4E-3D-32XGE-IR-B

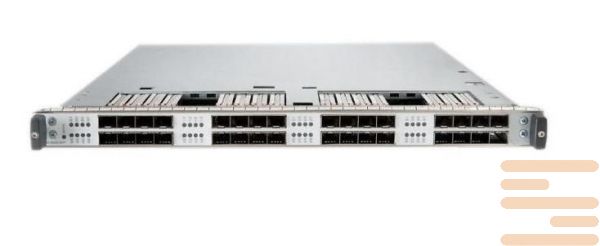

main product photo
€29,844.25
EAN: 11464
Condition: new
Stock: available on order
Lead time: 25-35 days
GPL price:

314150 $

MPC4E, FULL SCALE L2/L3 AND 32 L3VPN
Category: Line Cards

Contacts
+36 20 807 9600
[email protected]

90 Days Return
If goods have problems

Secure Payment
100% secure payment

interfaceВ feesВ orВ linearВ cardsВ Juniper NetworksВ (line card, interface module) В allow you to expand your router or switch (modular platform, chassis) Required functional, including the necessary access ports at speedsВ 1GbE,В 10GbE,В 40GbEorВ 100GbE, control boards (switch control board) etc..

Interface boards JuniperВ represented by various modules that are compatible with a particular series (for example. interface module MS-MIC-16G compatible with the entire rangeВ Juniper MX, and the module MPC-3D-16XGE-SFPP series compatibleВ MX240,В MX480В andMX960).

interface board MICВ (Modular Interface Cards) is a small-sized module that provides physical connection to various types of network devices. MIC the board can support various physical interfaces in one module.В module Juniper MICsВ also support hot swapping and plugging. For example, in routers MX series, interface moduleВ MICВ installed in the moduleВ MPCВ (Modular Port Concentrator), and in series fromВ MX5В beforeВ MX104В moduleВ MPCВ already built in chassis.

interface module Juniper MPCВ (Modular Port Concentrator) provides transfer services Lkand packages. moduleВ MPCВ encapsulates packets and passes them through the module's outgoing interfacesВ MIC. everyoneВ MPC moduleВ equipped with up to four chipsetsВ Junos Trio, which performs the functions of management. For example, a router Juniper MX960 supports installation of up to 12 modules MPCs, and the platform MX480 before 3 MPCs. For proper operationВ module Juniper MPCВ You need to use high-performance cooling modules. Online JuniperВ http://www.juniper.netВ there is a calculator for calculating the recommended power and cooling power, for a specific series and used MPC modules. В В

Interface modules DPCВ (Dense Port Concentrators) Provides several physical interfaces and pass systems Lkand packages on a single board that fits into a slot in a router or modular chassis.В module DPCВ accepts incoming packets and sends outgoing packets to the network.

module Juniper PICВ (Physical Interface Card) installed inВ FPCВ (Flexible PIC Concentrators), similar to how they workВ MICВ andMPC modules.В PICsВ modules provide physical interfaces, andВ FPCsВ boards provide transfers Lkfor packets on the network. everyoneВ FPCthe module is equipped with a microchipВ ASIC, which performs the functions of management, andВ FPCВ supports installation of 2 modulesВ PIC.

Technical characteristics of the interface module Juniper MPC4E-3D-32XGE-IR-B:

Software release
  • Junos OS Release 12.3R2 and later

Description
  • Fixed configuration MPC with thirty-two 10-Gigabit Ethernet ports
  • Power requirement: 12.7 A @ 48 V (610 W)
  • Weight: 19.4 lb (8.8 kg)
  • Model number: MPC4E-3D-32XGE-SFPP

Hardware features
  • Line-rate throughput of up to 260 Gbps
  • WAN-PHY mode at 10 Gbps on a per-port basis
  • Supports maximum transmission unit (MTU) size of 9,192 bytes for host bound packets. For Junos OS 16.1R1 and later releases, the MTU size supported is 9,500 bytes.
  • Supported on MX2020, MX2010, MX960, MX480, and MX240 routers with both normal-capacity and high-capacity power supplies and fan trays.

Software features
  • Optical diagnostics and related alarms
  • Up to 260 Gbps of full-duplex traffic
  • Intelligent oversubscription services
  • Configurable LAN-PHY and WAN-PHY mode options per port
  • Local loopback
  • Configurable to interoperate with routers that use the 100-Gigabit Ethernet PIC (Type 4 PIC on Type 4 FPC)
  • SeeВ Protocols and Applications Supported by the MX240, MX480, MX960, MX2010, and MX2020 MPC4EsВ for information about the protocols and applications that this MPC supports.

Cables and connectors
  • Fiber-optic 10-gigabit small form-factor pluggable (SFP+) transceivers:
  • Connector: Duplex LC
  • 10GBASE-SR (model number: SFPP-10GE-SR)
  • 10GBASE-LR (model number: SFPP-10GE-LR)
  • 10GBASE-ER (model number: SFPP-10GE-ER-XT)
  • 10GBASE-ZR (model number: SFPP-10GE-ZR)

Note:В SFPP-10GE-ZR has a commercial temperature rating and is not NEBS compliant when plugged into the 32x10GE MPC4E with SFP+. If the ambient air temperature exceeds 40В°C, Junos OS disables the transmitter, which takes the optical transceiver offline.

  • 10GBASE-ZR (model number: SFPP-10G-OTN-XT)
  • Supported in Junos OS Release 12.3R5, 13.2R3, 13.3, and later
  • NEBS compliant
  • Dual-rate extended temperature transceiver that supports LAN-PHY and WAN-PHY modes, and OTN rates
  • 10GBASE-ZR (model number: SFPP-10G-DT-ZRC2)
  • Supported in Junos OS Release 12.3R6, 13.2R3, 13.3R2, 14.1R1, and later
  • Supports LAN-PHY and WAN-PHY modes
  • Is tunable by configuring theВ wavelengthВ statement at theВ [edit interfacesВ interface-nameВ optics-options]В hierarchy level (seeВ wavelength)

Note:В SFPP-10G-DT-ZRC2 is not NEBS compliant when plugged into the MPC4E-3D-32XGE-SFPP MPC. If the ambient air temperature exceeds 40В°C, Junos OS disables the transmitter, which takes the optical transceiver offline.

  • Optical interface specifications—seeВ 10-Gigabit Ethernet 10GBASE Optical Interface Specifications.
  • Note:В On the MX960 router, FPC slotВ 0В and FPC slotВ 11В are not NEBS compliant beyond 104В°F (40В°C). This is a cooling restriction.

LEDs

OK/FAILВ LED, one bicolor:

  • Steady green—MPC is functioning normally.
  • Blinking green—MPC is transitioning online or offline.
  • Red—MPC has failed.

Enable/disable LED, one bicolor per port:

  • Green—Port is enabled.
  • Red—Port has failed.
  • Off—Port is disabled.

The enable/disable LEDs are arranged in four groups:

  • 0/0В throughВ 0/7
  • 1/0В throughВ 1/7
  • 2/0В throughВ 2/7
  • 3/0В throughВ 3/7
