interfaceВ feesВ orВ linearВ cardsВ Juniper NetworksВ (line card, interface module) В allow you to expand your router or switch (modular platform, chassis) Required functional, including the necessary access ports at speedsВ 1GbE,В 10GbE,В 40GbEorВ 100GbE, control boards (switch control board) etc..
Interface boards JuniperВ represented by various modules that are compatible with a particular series (for example. interface module MS-MIC-16G compatible with the entire rangeВ Juniper MX, and the module MPC-3D-16XGE-SFPP series compatibleВ MX240,В MX480В andMX960).
interface board MICВ (Modular Interface Cards) is a small-sized module that provides physical connection to various types of network devices. MIC the board can support various physical interfaces in one module.В module Juniper MICsВ also support hot swapping and plugging. For example, in routers MX series, interface moduleВ MICВ installed in the moduleВ MPCВ (Modular Port Concentrator), and in series fromВ MX5В beforeВ MX104В moduleВ MPCВ already built in chassis.
interface module Juniper MPCВ (Modular Port Concentrator) provides transfer services Lkand packages. moduleВ MPCВ encapsulates packets and passes them through the module's outgoing interfacesВ MIC. everyoneВ MPC moduleВ equipped with up to four chipsetsВ Junos Trio, which performs the functions of management. For example, a router Juniper MX960 supports installation of up to 12 modules MPCs, and the platform MX480 before 3 MPCs. For proper operationВ module Juniper MPCВ You need to use high-performance cooling modules. Online JuniperВ http://www.juniper.netВ there is a calculator for calculating the recommended power and cooling power, for a specific series and used MPC modules. В В
Interface modules DPCВ (Dense Port Concentrators) Provides several physical interfaces and pass systems Lkand packages on a single board that fits into a slot in a router or modular chassis.В module DPCВ accepts incoming packets and sends outgoing packets to the network.
module Juniper PICВ (Physical Interface Card) installed inВ FPCВ (Flexible PIC Concentrators), similar to how they workВ MICВ andMPC modules.В PICsВ modules provide physical interfaces, andВ FPCsВ boards provide transfers Lkfor packets on the network. everyoneВ FPCthe module is equipped with a microchipВ ASIC, which performs the functions of management, andВ FPCВ supports installation of 2 modulesВ PIC.

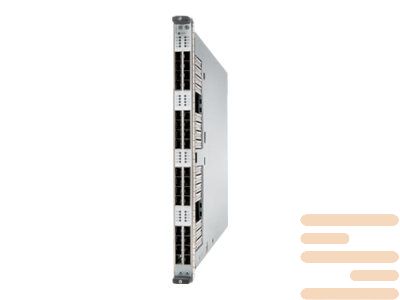

Technical characteristics of the interface module Juniper MPC4E-3D-32XGE-R-B:
|
General
|
|
Device Type
|
Expansion module
|
|
Form Factor
|
Plug-in module
|
В
|
Compatibility Information
|
|
Designed For
|
P/N: MX2020-BASE-AC, MX2020-BASE-DC, MX2020-PREMIUM-AC, MX2020-PREMIUM-DC
|
В
|
Dimensions & Weight
|
|
Depth
|
21.3 in
|
|
Height
|
15.5 in
|
|
Weight
|
22 lbs
|
|
Width
|
1.3 in
|
В
|
Environmental Parameters
|
|
Humidity Range Operating
|
5 - 90% (non-condensing)
|
|
Max Operating Temperature
|
104 В°F
|
|
Min Operating Temperature
|
32 В°F
|
В
|
Expansion / Connectivity
|
|
Interfaces
|
32 x 10Gb Ethernet - SFP+
|
В
|
Miscellaneous
|
|
Compliant Standards
|
ETSI, EN55024, EN55022 Class A, CISPR 22, EN55022 Class B, CCC, EMC, IRAM, UL 60950-1, IEC 60950-1, EN 60950-1, BSMI CNS 13438, FCC Part 15 A, S Mark, NEBS, EN 60825-1, ETS 300 753, EN 60950-1 Second Edition, GR-1089-CORE, VCCI Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1
|
В
|
Networking
|
|
Compliant Standards
|
IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.3ba
|
|
Connectivity Technology
|
Wired
|
|
Data Link Protocol
|
10 Gigabit Ethernet
|
|
Features
|
Firewall protection, layer 3 switching, layer 2 switching, VPN support, load balancing, MPLS support, VLAN support, content filtering, Weighted Round Robin (WRR) queuing, MAC address filtering, IPv6 support, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Virtual Route Redundancy Protocol (VRRP) support, VLAN Stacking, Quality of Service (QoS), MPLS VPN, bandwidth control, Bidirectional Forwarding Detection (BFD), IPv4 support, Link Aggregation Control Protocol (LACP), Neighbor Discovery Protocol (NDP), GRE tunneling, Class of Service (CoS), Ethernet encapsulation (EoIB), Loopback, layer 2.5 switching
|
|
Ports
|
10 Gigabit SFP+ x 32
|
В
|
Software / System Requirements
|
|
OS Required
|
JUNOS
|
