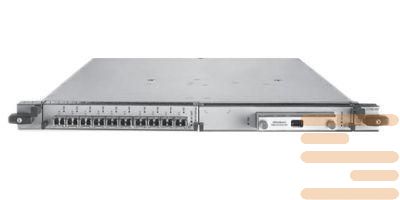

Module Juniper MX-MPC2E-3D-EQ-R-B
262650 $
interfaceВ feesВ orВ linearВ cardsВ Juniper NetworksВ (line card, interface module) В allow you to expand your router or switch (modular platform, chassis) Required functional, including the necessary access ports at speedsВ 1GbE,В 10GbE,В 40GbEorВ 100GbE, control boards (switch control board) etc..
Interface boards JuniperВ represented by various modules that are compatible with a particular series (for example. interface module MS-MIC-16G compatible with the entire rangeВ Juniper MX, and the module MPC-3D-16XGE-SFPP series compatibleВ MX240,В MX480В andMX960).
interface board MICВ (Modular Interface Cards) is a small-sized module that provides physical connection to various types of network devices. MIC the board can support various physical interfaces in one module.В module Juniper MICsВ also support hot swapping and plugging. For example, in routers MX series, interface moduleВ MICВ installed in the moduleВ MPCВ (Modular Port Concentrator), and in series fromВ MX5В beforeВ MX104В moduleВ MPCВ already built in chassis.
interface module Juniper MPCВ (Modular Port Concentrator) provides transfer services Lkand packages. moduleВ MPCВ encapsulates packets and passes them through the module's outgoing interfacesВ MIC. everyoneВ MPC moduleВ equipped with up to four chipsetsВ Junos Trio, which performs the functions of management. For example, a router Juniper MX960 supports installation of up to 12 modules MPCs, and the platform MX480 before 3 MPCs. For proper operationВ module Juniper MPCВ You need to use high-performance cooling modules. Online JuniperВ http://www.juniper.netВ there is a calculator for calculating the recommended power and cooling power, for a specific series and used MPC modules. В В
Interface modules DPCВ (Dense Port Concentrators) Provides several physical interfaces and pass systems Lkand packages on a single board that fits into a slot in a router or modular chassis.В module DPCВ accepts incoming packets and sends outgoing packets to the network.
module Juniper PICВ (Physical Interface Card) installed inВ FPCВ (Flexible PIC Concentrators), similar to how they workВ MICВ andMPC modules.В PICsВ modules provide physical interfaces, andВ FPCsВ boards provide transfers Lkfor packets on the network. everyoneВ FPCthe module is equipped with a microchipВ ASIC, which performs the functions of management, andВ FPCВ supports installation of 2 modulesВ PIC.
Technical characteristics of the interface module Juniper MX-MPC2E-3D-EQ-R-B:
Software release |
В·В В В В В В В В MX240, MX480, and MX960 routers : Junos OS Release 11.2R4 and later В·В В В В В В В В MX2010 and MX2020 router: Junos OS Release 12.3 and later For information on which MICs are supported on this MPC,В MIC/MPC Compatibility. |
Description |
В·В В В В В В В В Power requirement: 6.13 A @ 48 V (294 W) В·В В В В В В В В Weight: 14 lb (6.4 kg) В·В В В В В В В В Model number: MX-MPC2E-3D-EQ В·В В В В В В В В Name in the CLI:В MPCE Type 2 3D EQ |
Hardware features |
В·В В В В В В В В Two slots for MICs labeledВ PIC 0/1В andВ PIC 2/3 В·В В В В В В В В Two Junos Trio chipsets for increased scaling for bandwidth, subscribers, and services В·В В В В В В В В LAN-PHY mode at 10.3125В Gbps В·В В В В В В В В WAN-PHY mode at 9.953 Gbps |
Software features |
В·В В В В В В В В SeeВ Protocols and Applications Supported by the MX240, MX480, MX960, MX2010, and MX2020 MPC2EВ for information about the protocols and applications that this MPC supports. |
LEDs |
OK/FAIL LED, one bicolor: ·        Steady green—MPC is functioning normally. ·        Blinking green—MPC is transitioning online or offline. ·        Red—MPC has failed. |
В
В
condition | new |
---|
