Interface boards or line cards Juniper Networks (line card, interface module) allow you to expand your router or switch (modular platform, chassis) the required functionality, including the necessary access ports at speeds 1GbE, 10GbE, 40GbE or 100GbE, control boards (switch control board) etc..
Interface boards Juniper represented by various modules that are compatible with a particular series (for example. interface module MS-MIC-16G compatible with the entire range Juniper MX, and the module MPC-3D-16XGE-SFPP series compatible MX240, MX480 And MX960).
interface board MIC (Modular Interface Cards) is a small-sized module that provides physical connection to various types of network devices. MIC the board can support various physical interfaces in one module. module Juniper MICs also support hot swapping and plugging. For example, in routers MX series, interface module MICinstalled in the module MPC (Modular Port Concentrator), and in series from MX5 Before MX104 module MPC already built into the chassis.
interface module Juniper MPC (Modular Port Concentrator) provides transfer services Lkand packages. module MPC encapsulates packets and passes them through the module's outgoing interfaces MIC. Every MPC module equipped with up to four chipsets Junos Trio, which performs the functions of management. For example, a router Juniper MX960 supports installation of up to 12 modules MPCs, and the platform MX480 Before 3 MPCs. For proper operation module Juniper MPC need to use high-performance cooling modules. On the site Juniper http://www.juniper.net there is a calculator for calculating the recommended power and cooling power, for a specific series and used MPC modules.
Interface modules DPC (Dense Port Concentrators) provides multiple physical interfaces and transfer systems Lkand packages on a single board that fits into a slot in a router or modular chassis. module DPC accepts incoming packets and sends outgoing packets to the network.
module Juniper PIC (Physical Interface Card) installed in FPC (Flexible PIC Concentrators), similar to how they work MIC And MPC modules. PICs modules provide physical interfaces, and FPCs boards provide transfers Lkfor packets on the network. Every FPC the module is equipped with a microchip ASIC, which performs the functions of management, and FPC supports installation of 2 modules PIC.

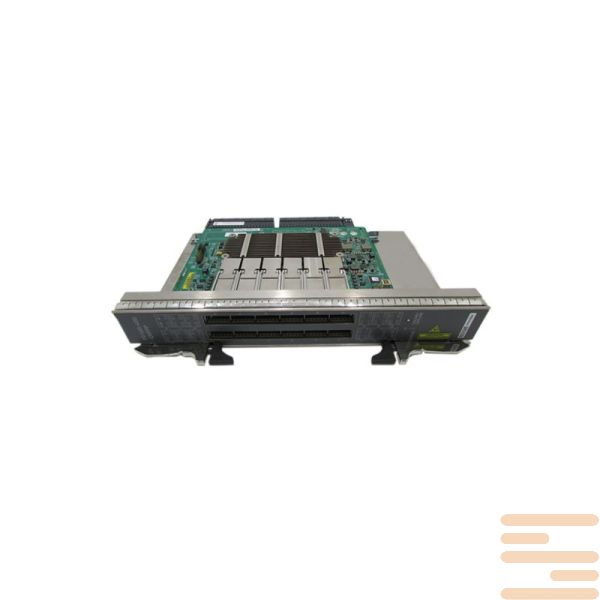

Interface Module Specifications Juniper P1-PTX-2-40GE-CFP:
|
Power Consumption Operational:
|
35 Watt
|
|
Form Factor:
|
Plug-in-Modul
|
|
Ports:
|
40 Gigabit CFP x 2
|
|
Compliant Standards:
|
IEEE 802.3ad (LACP), IEEE 802.3ah, IEEE 802.1ag
|
|
Voltage Required:
|
DC -48 V
|
|
OS Required:
|
JUNOS
|
|
Data Link Protocol:
|
40 Gigabit Ethernet
|
|
Features:
|
MAC-Adressenfilter, MPLS Fast Reroute (FRR), gekennzeichnetes VLAN
|
|
Construction:
|
original
|
|
Connectivity Technology:
|
Wired
|
|
Data Transfer Rate:
|
40 Gbps
|
|
Remote Management Protocol:
|
SNMP
|
|
Expansion Slots:
|
2 (gesamt)/ 2 (frei) x CFP
|
|
Status Indicators:
|
Status, Link/Aktivität
|
|
Capacity:
|
Maximale Anz. von Schnittstellen: 8000
|
|
Device Type:
|
Erweiterungsmodul
|
