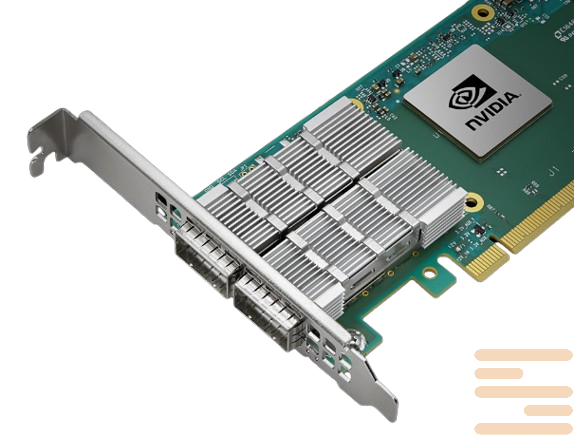

Nvidia ConnectX-6 Dx Ethernet adapter card 900-9X663-0083-SQ0
The NVIDIA ConnectX-6 Dx Ethernet Adapter, model 900-9X663-0083-SQ0, is a dual-port 100GbE (QSFP28) PCIe Gen4 x16 network interface card designed for high-performance data centers and cloud infrastructures. It is powered by the ConnectX-6 Dx controller, providing ultra-low latency, high throughput, and efficient offloading capabilities for storage, networking, and virtualization applications. With support for RDMA (RoCE v2), high-speed security protocols such as MACsec and IPsec, and hardware-based offloads, this adapter ensures secure, high-performance networking.
ConnectX-6 Dx 100G/200G Ethernet NIC – This is a high-speed and protected new generation network map designed to optimize the work. It provides opportunities to work effectively in areas such as data safety, virtualization, software-defined networks (SDN), Virtualization of network functions (NFV), Analysis of big data, machine training and repositories management. By means of ConnectX-6 Dx You can significantly increase productivity and speed up the processes in high -loaded systems.
Model ConnectX-6 Dx Supports Ethernet connections with a bandwidth of up to 100 GbIT/s on two ports or 200 GbIT/s on a single port. This is ensured by using advanced serialization technologies/Deperialization (SerDes), which offer transfer speeds up to 50 GbIT/with (PAM4) or 25/10 GbIT/with (NRZ). These parameters make the device a great choice for cloud platforms and data processing centers where speed and reliability are important.
Particular attention should be paid to the support of hardware accelerators of virtual routers (vRouter) and virtual switches (vSwitch), which significantly increases network performance compared to solutions without hardware accelerators. This solution helps to reduce the burden on the processor, freeing up resources for the most important tasks, and thus reduces the operating costs of equipment.
In conditions of growing cybersecurity, ConnectX-6 Dx equipped with built -in encryption and decryption tools, package filtration and other features that provide a high level of protection. These opportunities provide unsurpassed data protection performance at each network node.
In addition, this network card supports the virtualization of the I / O/Output (SR-IOV) and virtio, offering clients flexibility in choosing the best technologies to solve specific tasks. ConnectX-6 Dx also has an improved optimization to work with data warehouses, supporting the acceleration of processes using Non-Volatile Memory Express over Fabrics (NVMe-oF), which is important when working with large volumes of information.
Network maps of the series ConnectX from nvidia known for its reliability and high performance, and model ConnectX-6 Dx is no exception. It provides support RDMA (Remote Direct Memory Access) via a unified Ethernet network (RoCE), which enables the creation of scalable and fault-tolerant network solutions with minimal latency.
Specifications Nvidia ConnectX-6 Dx Ethernet adapter card 900-9X663-0083-SQ0:
| Parameter | Specification |
|---|---|
| Model Number | 900-9X663-0083-SQ0 |
| Product Series | NVIDIA ConnectX-6 Dx |
| Port Configuration | Dual-Port 100GbE (QSFP28) |
| Interface Type | PCI Express Gen4 x16 |
| Form Factor | Full-height |
| Networking Controller | ConnectX-6 Dx |
| Virtualization Support | SR-IOV, VirtIO, VMware NetQueue |
| RDMA Support | RoCE v2 (Remote Direct Memory Access) |
| Storage Acceleration | NVMe-oF (Remote Direct Storage) |
| Security Capabilities | MACsec, IPsec, Secure Boot |
| Hardware Offloads | TSO, LRO, LSO, Checksum Offload, RSS, GENEVE, VXLAN, NVGRE |
| Power Requirement | ~25W (typical) |
| Cooling Mechanism | Passive Heatsink |
| Advanced Features | DOCA SDK, Programmable Match-Action Engine, Telemetry |
| Compliance | RoHS, CE, FCC, PCIe Gen4 |
| Operating Temperature Range | 0°C to 55°C |
| condition | new |
|---|
