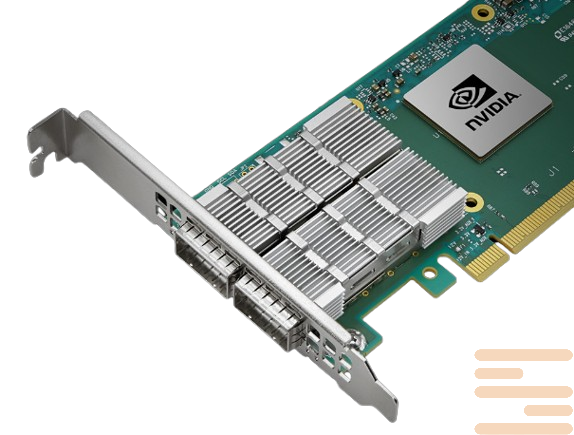

Nvidia ConnectX-6 Dx Ethernet adapter card MCX623102AN-ADAT
The NVIDIA ConnectX-6 Dx Ethernet Adapter, model MCX623102AN-ADAT, is a dual-port 200GbE NIC engineered for next-generation cloud, AI, and storage workloads. Built on the advanced ConnectX-6 Dx architecture, this adapter supports PCIe Gen4 x16, offers two QSFP56 ports, and delivers industry-leading throughput with ultra-low latency. It enables comprehensive offloads for RDMA (RoCE v2), NVMe over Fabrics, and GPUDirect Storage, reducing CPU overhead in demanding environments.
ConnectX-6 Dx 100G/200G Ethernet NIC – This is a high-speed and protected new generation network map designed to optimize the work. It provides opportunities to work effectively in areas such as data safety, virtualization, software-defined networks (SDN), Virtualization of network functions (NFV), Analysis of big data, machine training and repositories management. By means of ConnectX-6 Dx You can significantly increase productivity and speed up the processes in high -loaded systems.
Model ConnectX-6 Dx Supports Ethernet connections with a bandwidth of up to 100 GbIT/s on two ports or 200 GbIT/s on a single port. This is ensured by using advanced serialization technologies/Deperialization (SerDes), which offer transfer speeds up to 50 GbIT/with (PAM4) or 25/10 GbIT/with (NRZ). These parameters make the device a great choice for cloud platforms and data processing centers where speed and reliability are important.
Particular attention should be paid to the support of hardware accelerators of virtual routers (vRouter) and virtual switches (vSwitch), which significantly increases network performance compared to solutions without hardware accelerators. This solution helps to reduce the burden on the processor, freeing up resources for the most important tasks, and thus reduces the operating costs of equipment.
In conditions of growing cybersecurity, ConnectX-6 Dx equipped with built -in encryption and decryption tools, package filtration and other features that provide a high level of protection. These opportunities provide unsurpassed data protection performance at each network node.
In addition, this network card supports the virtualization of the I / O/Output (SR-IOV) and virtio, offering clients flexibility in choosing the best technologies to solve specific tasks. ConnectX-6 Dx also has an improved optimization to work with data warehouses, supporting the acceleration of processes using Non-Volatile Memory Express over Fabrics (NVMe-oF), which is important when working with large volumes of information.
Network maps of the series ConnectX from nvidia known for its reliability and high performance, and model ConnectX-6 Dx is no exception. It provides support RDMA (Remote Direct Memory Access) via a unified Ethernet network (RoCE), which enables the creation of scalable and fault-tolerant network solutions with minimal latency.
Specifications Nvidia ConnectX-6 Dx Ethernet adapter card MCX623102AN-ADAT:
| Parameter | Specification |
|---|---|
| Model Number | MCX623102AN-ADAT |
| Product Series | NVIDIA ConnectX-6 Dx |
| Port Configuration | Dual-Port 200GbE |
| Connector Type | QSFP56 |
| Host Interface | PCI Express Gen4 x16 |
| Form Factor | Full-height, 3/4 length |
| Networking Controller | ConnectX-6 Dx |
| Virtualization Support | SR-IOV, VirtIO, VMware NetQueue, PCIe ATS |
| RDMA Support | RoCE v2 (RDMA over Converged Ethernet) |
| Storage Offloads | NVMe-oF, GPUDirect Storage |
| Security Capabilities | IPsec, MACsec, Secure Boot, Hardware Root-of-Trust |
| Networking Offloads | GENEVE, VXLAN, NVGRE, TSO, LRO, RSS, Header Splits |
| Telemetry & Monitoring | Real-time flow telemetry, programmable counters |
| Power Consumption | ~26–28W (typical) |
| Cooling | Passive Heatsink |
| Firmware | Secure boot, signed firmware upgrade support |
| System Compatibility | x86, Arm, IBM Power systems |
| Operating Temp Range | 0°C to 55°C |
| Compliance Certifications | RoHS, FCC, CE, ICES, VCCI, RCM |
| condition | new |
|---|
