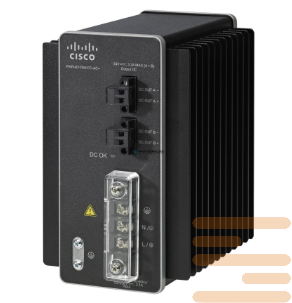

Power supply Cisco PWR-IE170W-PC-AC=
SKU
PWR-IE170W-PC-AC=
€1,706.40
EAN:
20146
Condition:
new
Stock:
available on order
Lead time:
25-35 days
GPL price:
2230 $
170W AC to DC or High DC to DC Power Supply
Category: Networking Accessories
Cisco Systems offers a wide range of related products and accessories that complete the equipment. The client has the ability to separately >ath power supply or fan cooling module to the chassis Cisco. You can also pick up Mounting in a rack for the switch Catalyst, or add prompt and flash memory into the router ISR4000 series by bought the desired bar of a certain container.
For each series or line of equipment Cisco There are many different kinds components and accessories.
Schedule of power supply Cisco PWR-IE170W-PC-AC=:
| Parameter | Specification |
|---|---|
| Product Name | Cisco PWR-IE170W-PC-AC= |
| Product Type | Industrial AC Power Supply (for PoE/PoE+ switches) |
| Form Factor | DIN Rail Mountable |
| Input Voltage Range | 100–240 VAC (wide range), 2.5 A max |
| Input Frequency | 50–60 Hz |
| Output Voltage | 54 VDC nominal |
| Maximum Output Power | 170 W |
| Output Current | Up to 3.15 A at 54 VDC |
| Efficiency | ≥ 88% typically |
| Cooling Method | Natural convection (fanless operation) |
| Dimensions (HxWxD) | 124 mm x 60 mm x 120 mm (4.88 x 2.36 x 4.72 in.) |
| Weight | ~0.8 kg (1.76 lb) |
| Operating Temperature | -40°C to +70°C (full load)-40°C to +85°C (with output derating) |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Input Protection | Internal fuse, inrush current limiter |
| Output Protection | Overload, short-circuit, and overvoltage protection |
| MTBF | > 500,000 hours (Telcordia SR-332, Ground Benign Conditions) |
| Certifications | UL 508, cULus, CE, CB Scheme, RCM, EAC, RoHS |
| EMC Compliance | EN 61000-6-2, EN 61000-6-4, CISPR 32 Class B |
| Environmental Compliance | RoHS 6/6 compliant |
| Mounting Method | 35 mm DIN Rail |
| Output Connector | Pluggable terminal block (Phoenix-style), 2-pin for DC output |
| Input Connector | 3-pin terminal block (Line, Neutral, Ground) |
| Primary Use Case | Designed to power Cisco Industrial Ethernet switches requiring PoE or PoE+ |
| Part Number | PWR-IE170W-PC-AC= |
| condition | new |
|---|
